The width of the carton storage area, the length of the carton, the width of the carton, and the height of the carton can all be easily adjusted with a screwdriver. Changing carton dimensions requires no tools to adjust the machine. If you are looking for a simple yet heavy-duty carton erector, this is a machine you can choose.

• Speed: 10-12 cartons/minute
• Shipping weight: 342-550 lbs
• Power requirement: 110 Volts 60 Hz (customizable)
• Electrical On/Off Switch Can Be Mounted on Either Side of the Machine

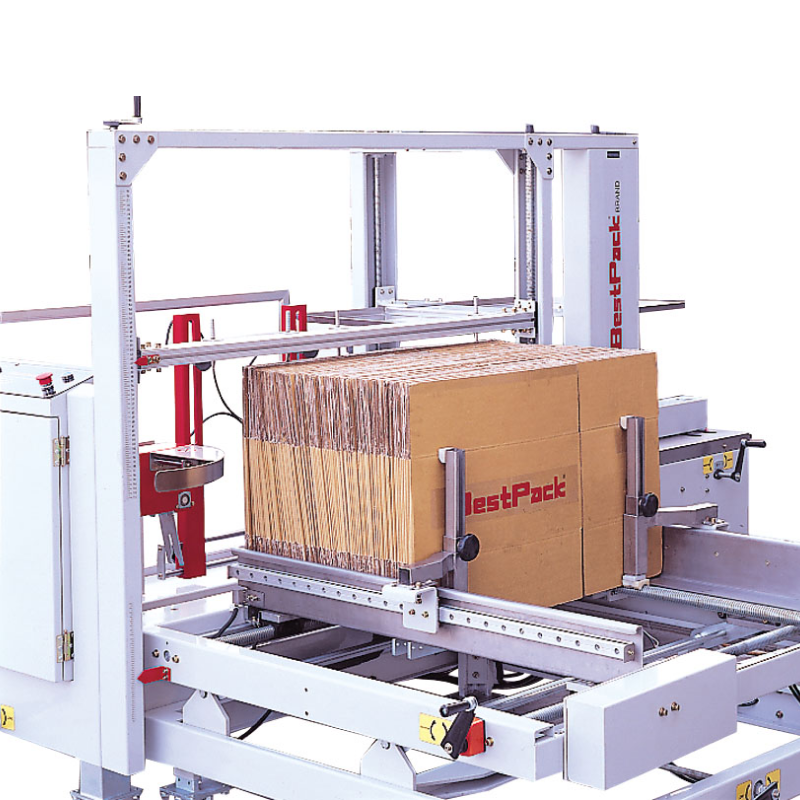

• Easy to operate, can replenish cartons without stopping the machine, and requires no tools to change carton sizes.
• The machine is streamlined and can produce a wide range of cartons, suitable for small to medium-sized cartons.
• Tape adjustment range from:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape adjustment without additional part
• Automatically detects missing or broken tape, or tape that has not been cut.
• Automatic and consistent cap folding eliminates the need for manual cap folding, increasing productivity.
• Tension control arm ensures smooth and continuous tape pulling with minimal noise.
• Adjustable carton compression rollers ensure accurate tape positioning.
• Tape tension adjustment knob to prevent excessive tape feed.
• Double-sided belt conveyor with pulleys for quick adjustment and accurate carton delivery.
• An efficient power and transmission system can extend machine life.
• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.
• Oil-free cylinder, maintenance-free cylinder
• Insufficient air pressure will automatically alert the operator.

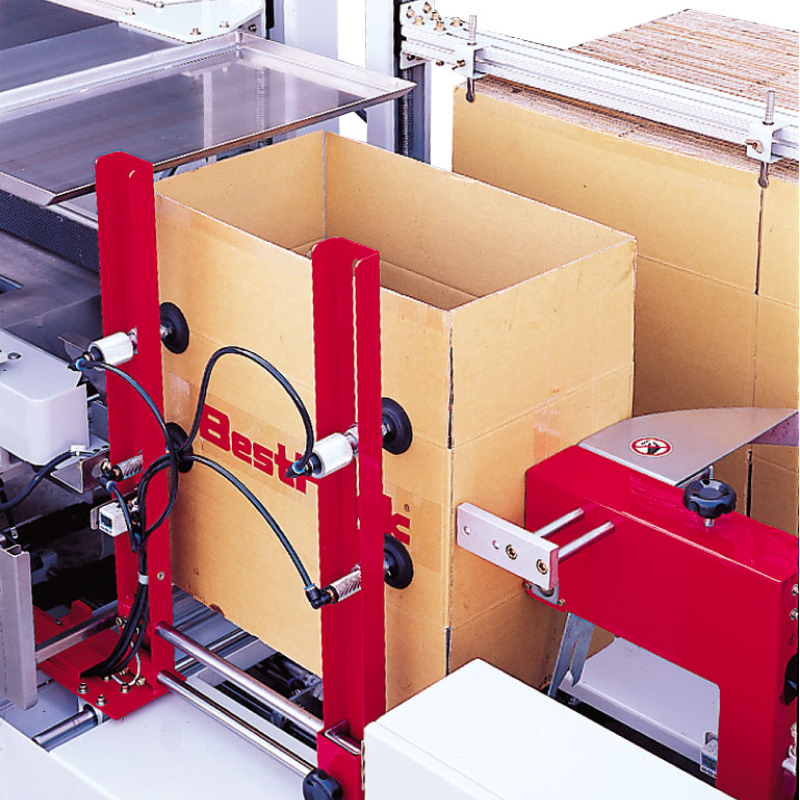

• Suction cup forming utilizes an independent vacuum pump to ensure forming quality.

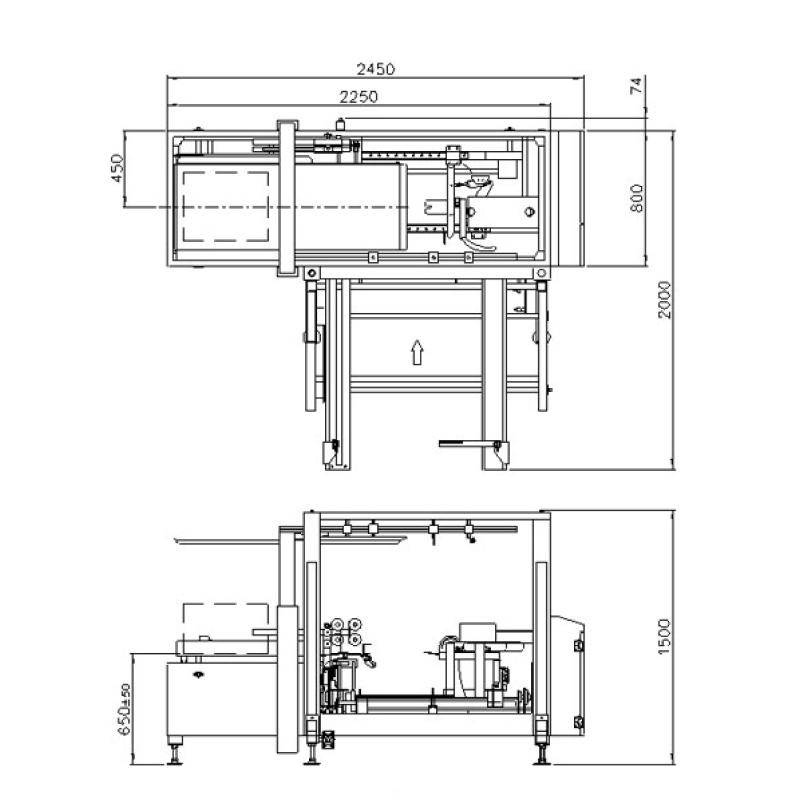

• Machine Size:
(L): 100.8″(W): 83.0″(H): 64.3″
• Minimum / maximum carton size (customizable):
(L): 202mm~610mm; 8”~24”
(W): 152mm~406mm; 6”~16”
(H): 127mm~457mm; 5”~18” (H+1/2W ≧ 230)
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• Tape applicators: 2″ tape applicator & 3″ tape applicator

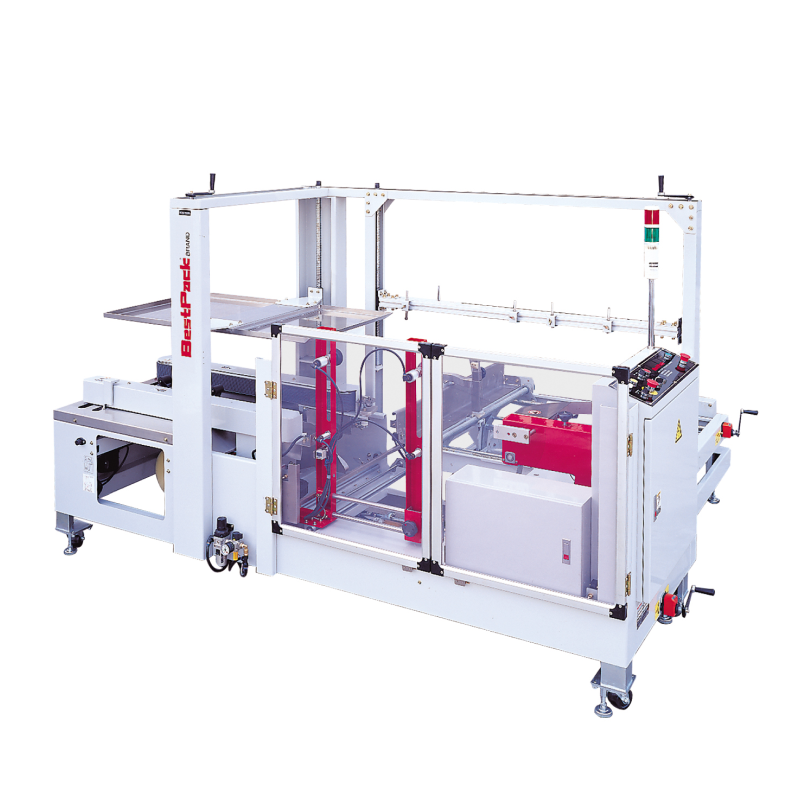

• Safety door (power off device optional)
