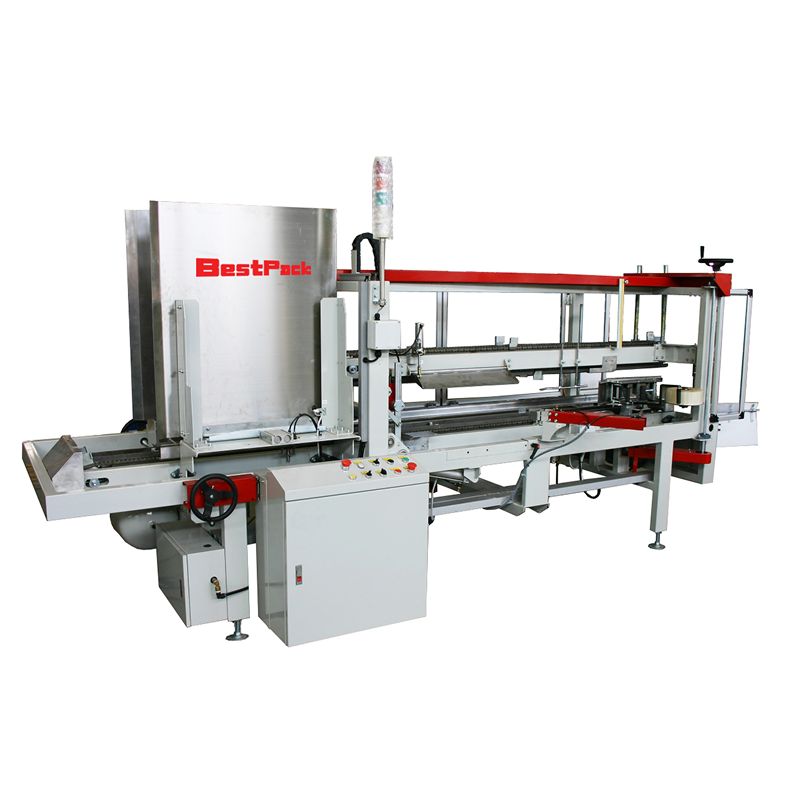

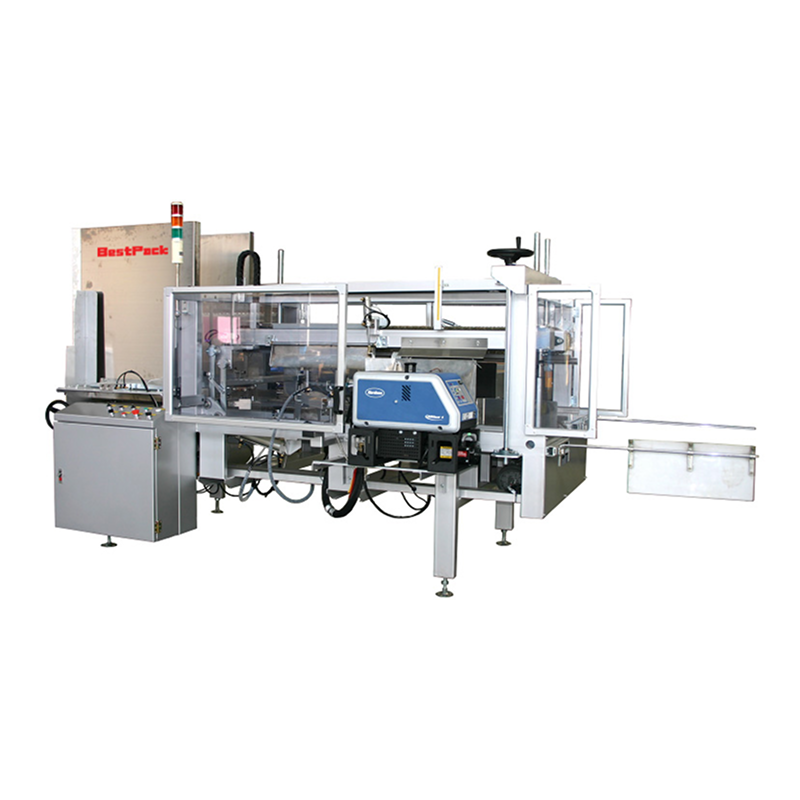

The ESHB model is an innovative and high-performance carton erector and sealer. This carton erector is designed for packaging heavy-duty cartons and allows for quick and easy changes to carton dimensions. The width of the carton storage area, the carton width, and the carton height can be easily adjusted with a screwdriver. If you are looking for a simple yet heavy-duty carton erector, this is a machine you should definitely check out.

• Speed: Up to 18 boxes per minute (depending on box size and opening range)
• Shipping weight: 342-550 lbs
• Power requirements: 380V 50Hz (customizable upon request)
• The temporary storage area for cartons has a capacity of 100 cartons.
• Cartons are ejected from the temporary storage area in a straight, downward direction.
• Suction Cup System
• Omron PLC Logic Control
• Carton size can be changed quickly.
• Heavy-duty architecture
• Fault alarm
• Faulty photocell
• Low tape alarm
• Heavy-duty brake casters or frame feet
• Includes a handle with measuring scale.

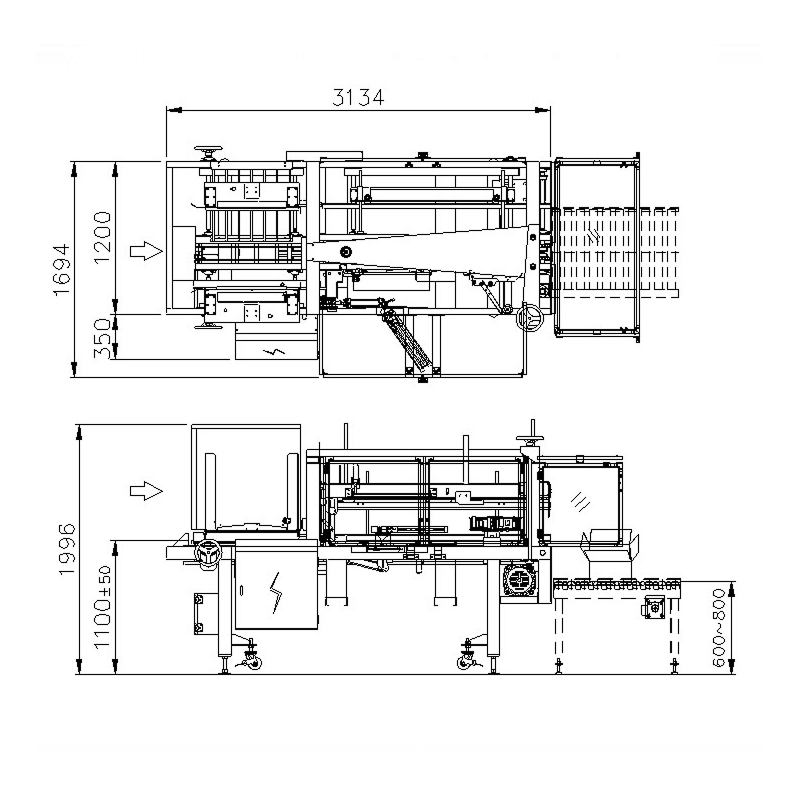

• Machine Size:
(L): 126.0″(W): 75.0″(H): 79.0″
• Minimum / maximum carton size (customizable):
(L): 355mm ~ 400mm; 13.97” ~ 15.74”
(W): 268mm ~ 295mm; 10.55” ~ 11.61”
(H): 250mm ~ 310mm; 9.84” ~ 12.20”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• Tape applicators: 2″ tape applicator & 3″ tape applicator

• Emergency stop button
• Safety door (power off device optional)
