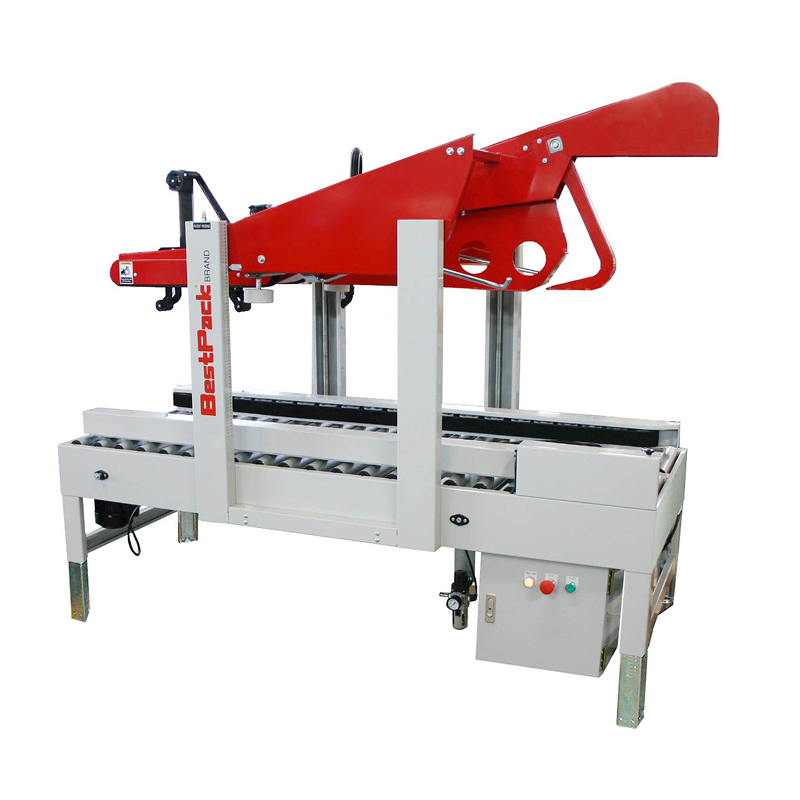

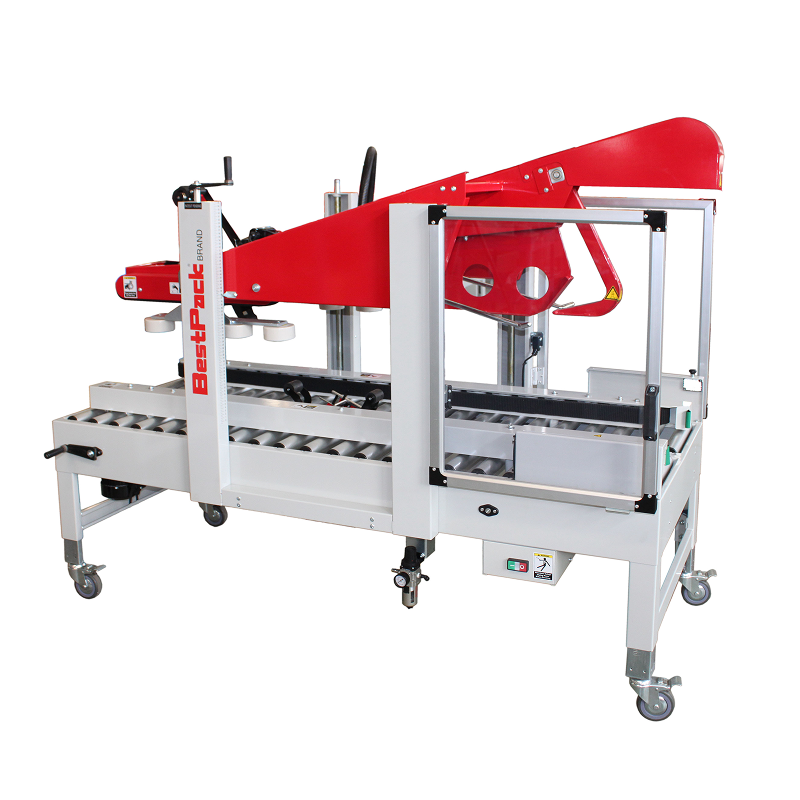

The AQ series is an automatic top- and side-driven carton sealing machine, suitable for heavier cartons of the same size. The machine has four belt drives (two side belts and two top belts) and three motor drives on the machine base; the four belts increase stability, and the four columns supporting the machine base ensure a secure sealing of the carton.

• Power requirement: 110 Volts 60 Hz (Custom voltage available)
• Air pressure requirement: 45-60 PSI, 4-5 CFM
• Speed: Up to 35 cartons per minute
• Tape Head: Standard: 2″, Available: 3″
• Shipping weight: 500 – 585 lbs
• Tool-free tape replacement for tape head
• Tape width adjustment range:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape size adjustment without additional parts
• Tension control arm ensures smooth tape feed and reduces noise
• Tape tension adjustment knob prevents excessive tape dispensing
• All drive belts equipped with V-guides for precise tracking and longer belt life
•UL electrical components / CE electrical components (Customizable)

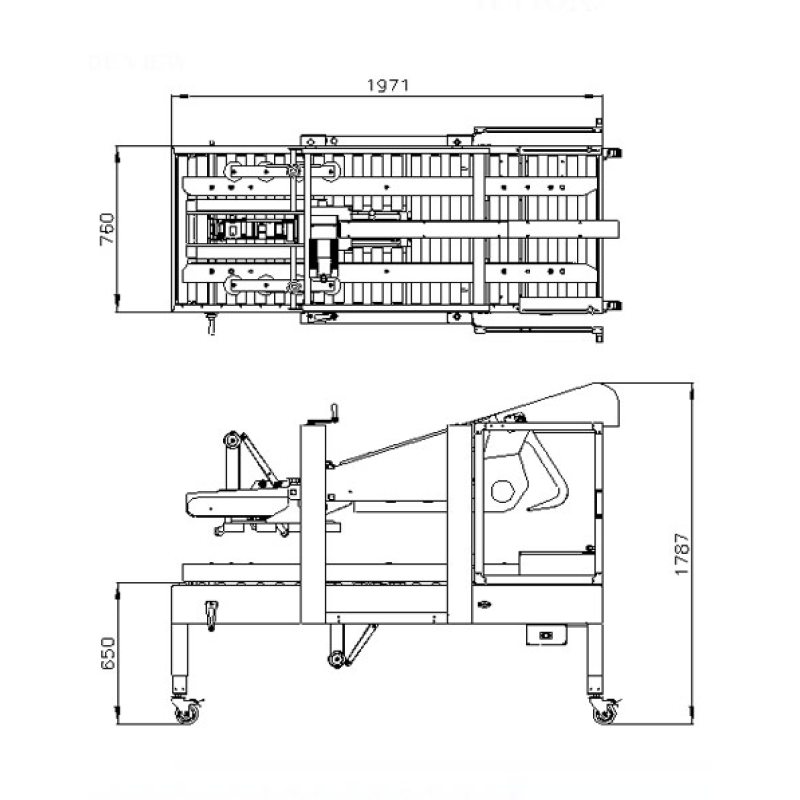

•Machine dimensions:
L: 1973.5mm(77.7″) W: 858.5mm(33.8″) H: 1752.6 mm(69.0″)
• Compatible tape heads: ALCO tape head, BP tape head, TH tape head
• Carton size range (Customizable):
(L): 150mm ~ 700mm; 5.9” ~ 27.56”
(W): 190mm ~ 550mm; 7.42” ~ 24.48”
(H): 114mm ~ 508mm; 4.45” ~ 19.84”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• Unique high-speed tape applicator with patented tape angle and length adjustment plate and noise-reducing swing arm.
• Unique automatic cap folding device
• Adjustable worktable height
• Oil-free pneumatic cylinder
• Top side clamping box
• Operation manual

• Semi-automatic carton separator
• Emergency stop button
• Workingtable
• Carton stabilizing plate
• High-speed motor upgrade (up to 125 ft/min)
• In/out carton conveyor
• Compatible with separator: ARX model
• Safety guard (Optional power cut-off device)
• Stainless steel machine
• Tool box
