• Shipping weight: 342 – 550 lbs
• Power requirement: 110 Volts 60 Hz (Custom voltage available)
• Two-stage column design
• Tool-free tape replacement for tape head
• Automatically folds standard rectangular carton flaps to increase production efficiency
• Tape width adjustment range:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape size adjustment without additional parts
• Tension control arm ensures smooth tape feed and reduces noise
• Tape tension adjustment knob prevents excessive tape dispensing
• Adjustable carton pressure rollers align cartons for accurate tape positioning
• Automatic side belt centering for accurate carton alignment
• All drive belts equipped with V-guides for precise tracking and longer belt life
• Electrical on/off switch can be installed on either side of the machine

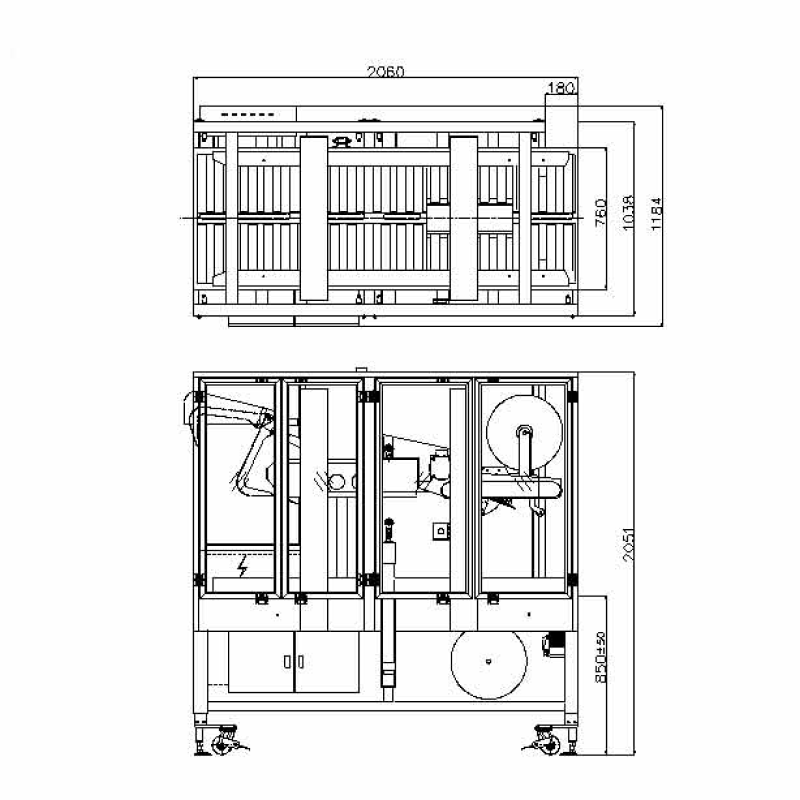

•Machine dimensions:
L: 2026mm(81.1″) W: 1188mm(46.77″) H: 2071 mm(81.54″)
• Compatible tape heads: ALCO tape head, BP tape head, TH tape head
• Carton size range (Customizable):
(L): 435mm ~ 500mm; 17.13” ~ 19.70”
(W): 350mm ~ 370mm; 13.78” ~ 14.57”
(H): 270mm ~ 320mm; 10.63” ~ 12.60”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

•Tape heads: 2″ tape head & 3″ tape head
• Two side belts
• Machine working height: 24.6″ – 30.75″
• Top carton holding mechanism with four alignment rollers
• Tape roll length: 1000 yd, 1500 yd, 2000 yd
• Heavy-duty machine frame
• UL electrical components / CE electrical components (Customizable)
• Operation manual

• Emergency stop button
• High-speed motor upgrade (up to 125 ft/min)
• Flap folding mechanism (top flap folding)
• Safety guard (Optional power cut-off device)
• Stainless steel construction
• Tool box
• Conveyor system
•Tape break detection device
• Digital display
• Inkjet printer
• Printing press
