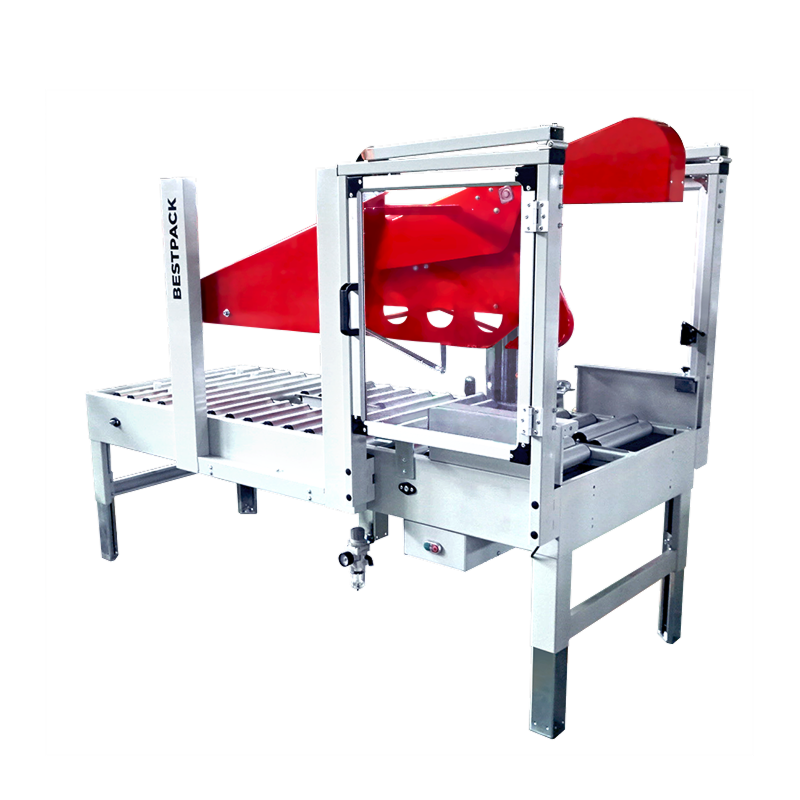

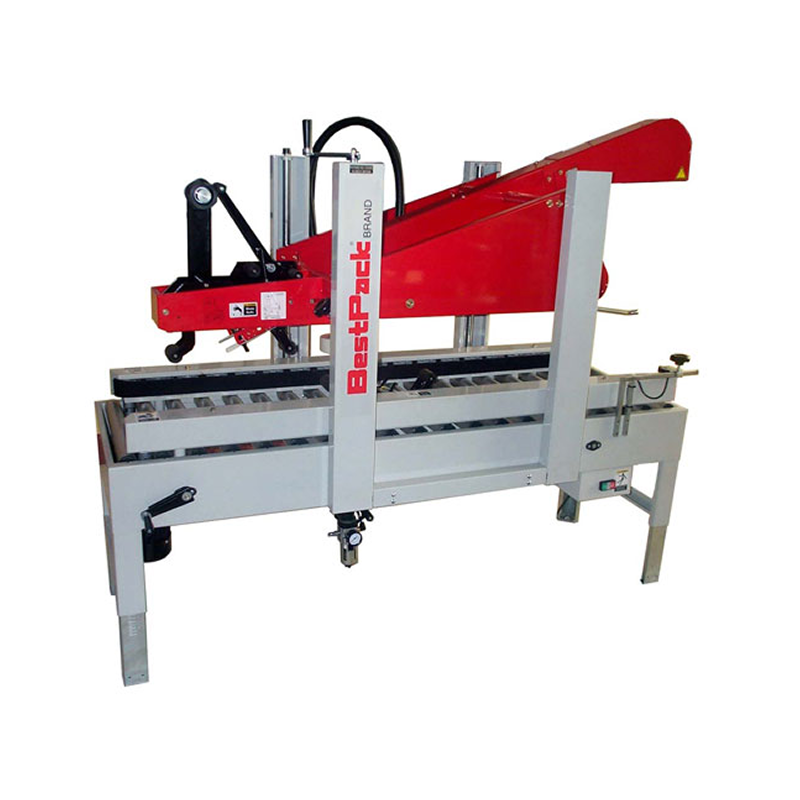

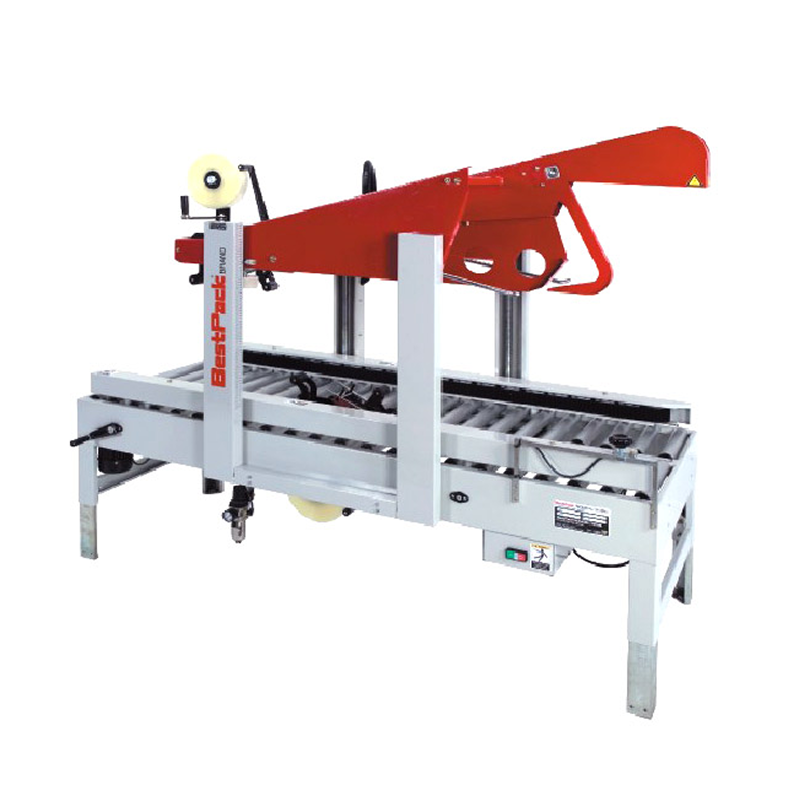

The AS series is a standard semi-automatic folding and sealing carton machine. Simply fold the bottom flap of the carton, place it in the AS, and the AS will automatically fold the top flap and seal the carton. It is an efficient and economical machine. The machine has two belt drives (two side belts) powered by three UL-certified 110V motors. The AS series carton sealing machine is designed with a four-column support structure and uses 60 PSI and 4-5 CFM of air pressure.

• Power requirement: 110 Volts 60 Hz (customizable)
• Air pressure requirement: 45-60 PSI, 4-5 CFM
• Speed: Up to 35 cartons/minute
• Shipping weight: 500-585 lbs
• Tool-free tape replacement for main unit.
• Dual top and bottom drive belts reduce idler pulley friction
• Upper main unit with brush smoothing system for reliably smoothing the tape on top of the sealing boxes.
• Tape adjustment range from:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape adjustment without additional part
• Tape tension adjustment knob to prevent excessive tape feed.
• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.
• The on/off switch can be installed on either side of the machine.

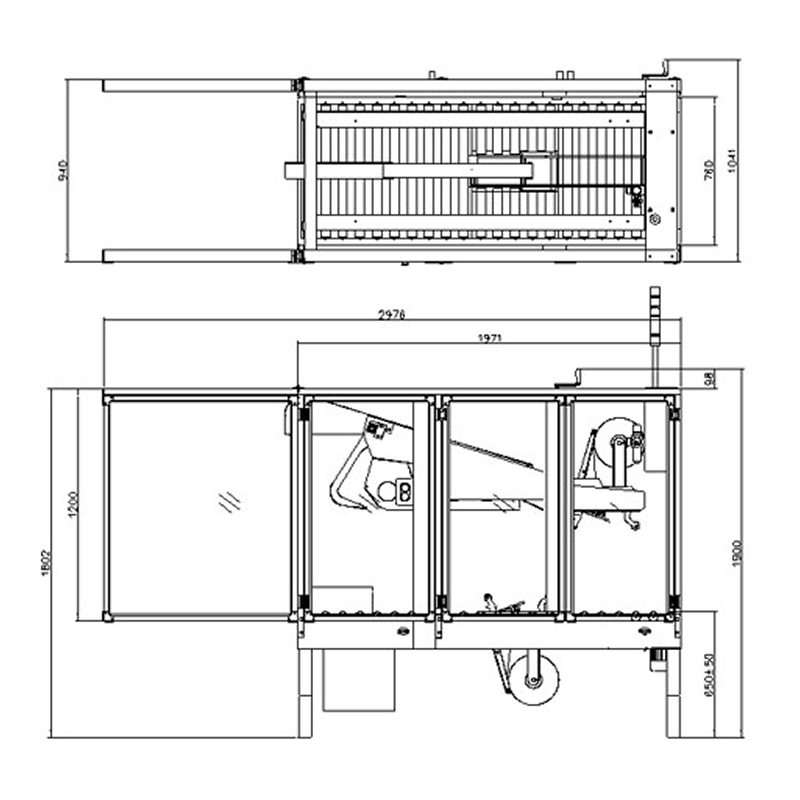

• Machine Size:
(L): 77.7″(W): 33.8″(H): 69.0″
• Applicable tape heads: ALCO tape head、BP tape head、TH tape head
• Minimum / maximum carton size (customizable):
(L): 200mm ~ 700mm; 7.87” ~ 27.56”
(W): 115mm ~ 520mm; 4.53” ~ 20.47”
(H): 100mm ~ 520mm; 3.93” ~ 20.47”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• Tape applicator: Standard 2″ tape applicator and 3″ tape applicator are also applicable.
• Unique high-speed tape applicator with patented tape angle and length adjustment plate and noise-reducing swing arm.
• Unique automatic cap folding device
• Adjustable worktable height
• Top side clamping box
• Instruction Manual

• Emergency stop button
• Workingtable
• Carton stabilizing plate
• High-speed motor upgrade (up to 125 ft/min)
• In/out carton conveyor
• Compatible with separator: ARX model
• Safety door (power off device optional)
• Stainless steel construction
• Toolbox
