the ASD

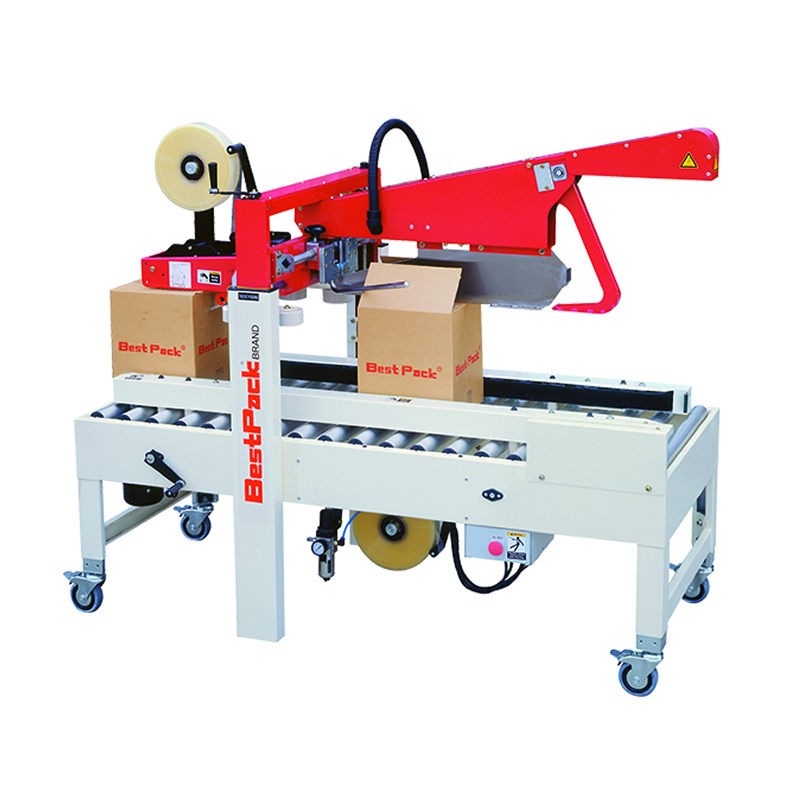

Semi-automatic carton sealing machine
Semi-Automatic Flap Folding Carton Sealer
• Standard machine color configuration: Gray and red.
• Compatible with 2″ and 3″ tape heads, or special tape heads (1.5″ or 4″–6″)
• Machine color and material (stainless steel) can be customized upon request.
Semi-automatic Operation
Fixed carton size
Top & Bottom Seal
Power Requirement：110 Volts 60 Hz
(customizable)
Air pressure requirement: 45-60 PSI, 4-5 CFM
Shipping weight: 342-550 lbs
The ASD series is a semi-automatic adjustable carton sealer that requires no manual pushing. It is used to seal both light and heavy cartons, offering a wide range of sealing capabilities and producing the best sealing quality for most cartons. All systems are equipped with our unique pull-out "high-speed" tape applicator, featuring a patented tape fold length adjustment plate and a two-section column. The upper base can be extended for increased height, allowing for a 4″ increase in sealing height.
• Air pressure requirement: 45-60 PSI, 4-5 CFM
• Speed: Up to 40 cartons/minute
• Shipping weight: 342-550 lbs
• Power requirement: 110 Volts 60 Hz (customizable)
• Tool-free tape replacement for main unit.
• Tape adjustment range from:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape adjustment without additional part
• Tape tension adjustment knob to prevent excessive tape feed.

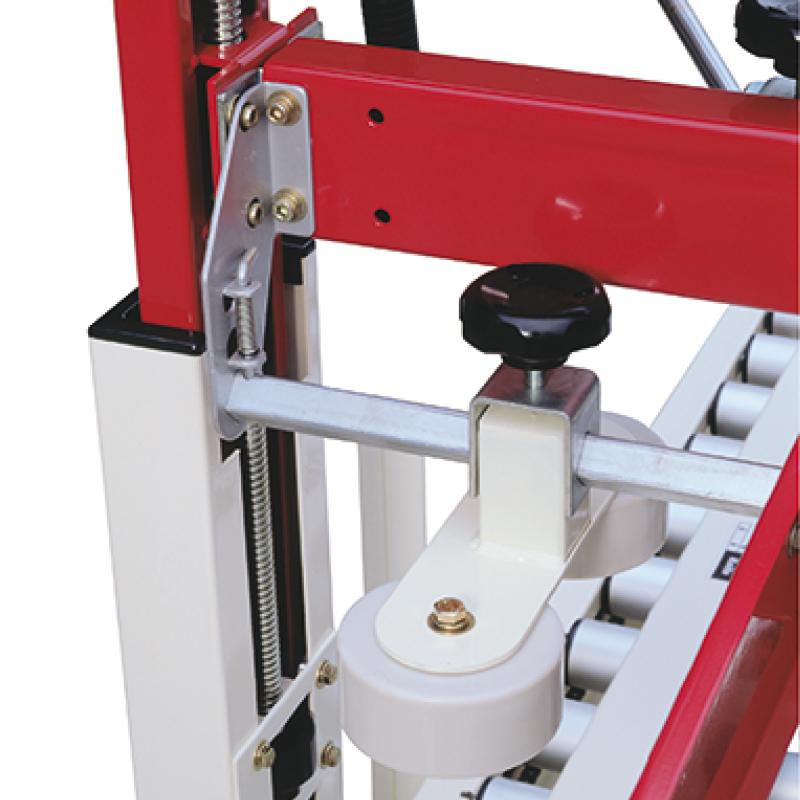

• Adjustable carton compression rollers ensure accurate tape positioning.
• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.
• The on/off switch can be installed on either side of the machine.
• Machine Size:
(L): (W): (H):
• Applicable tape heads: ALCO tape head、BP tape head、TH tape head
• Minimum / maximum carton size (customizable):
(L): 200mm ~ 650mm; 7.87” ~ 17.72”
(W): 110mm ~ 510mm; 4.33” ~ 20.08”
(H): 100mm ~ 510mm; 3.94” ~ 20.08”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.
| action | air consumption | |
| box/min | L/ min | CFM |
| 35 | 50.84 | 1.80 |
• Tape applicator: Standard 2″ tape applicator and 3″ tape applicator are also applicable.
• Two side belts
• Machine worktable height: 24.6″ to 30.75″
• Top carton clamping mechanism with four rollers
• Tape roll lengths: 1000 yards, 1500 yards, 2000 yards
• Heavy-duty frame
• UL electrical components / CE electrical components (customizable)
• Instruction Manual
• Semi-automatic carton separator
• Emergency stop button
• High-speed motor upgrade (125 ft/mine)

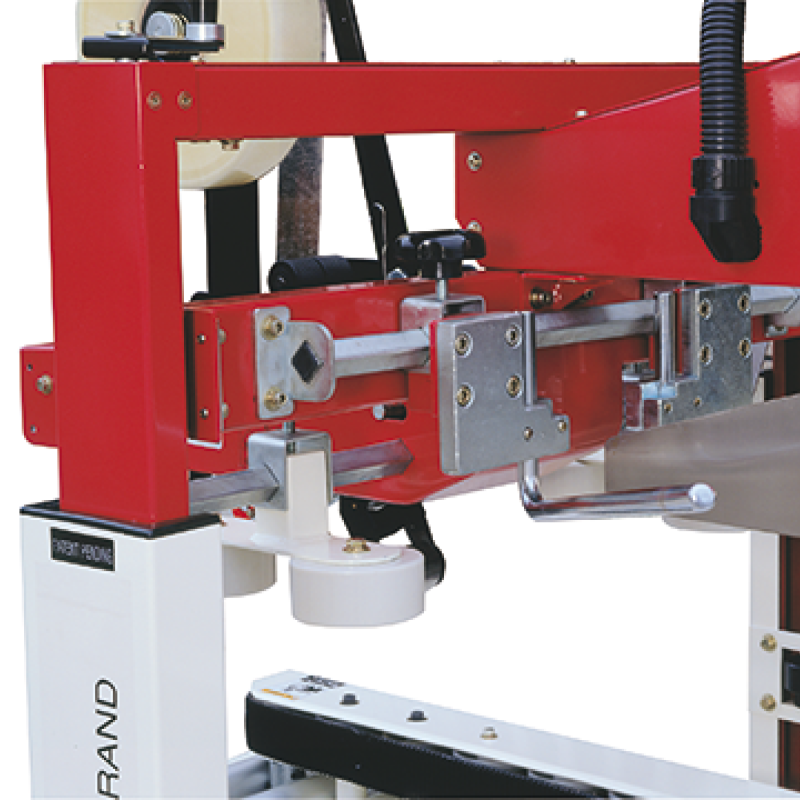

• Folding cover mechanism (folding top cover)
• Safety door (power off device optional)
• Stainless steel construction
• Toolbox
• Conveyor rack
• No-tape / tape-break detection device
• Digital display
• Inkjet printer
• Printing press
