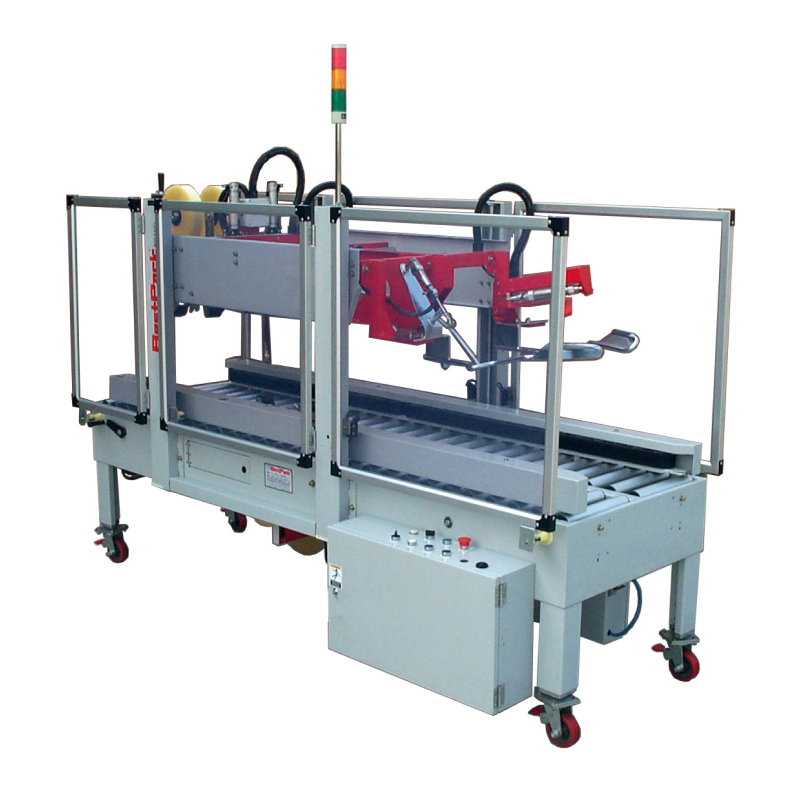

ATFUX is a machine specifically designed for sealing fruit boxes. It uses tape to seal the boxes and is designed to meet the needs of packaging light to heavy-duty HSC cartons. It is extremely helpful for packaging oranges, potatoes, or apples.

• Tool-free tape replacement for main unit.
• Tape adjustment range from:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape adjustment without additional part
• Tape tension adjustment knob to prevent excessive tape feed.
• Adjustable carton compression rollers ensure accurate tape positioning.
• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.
• The on/off switch can be installed on either side of the machine.

• Machine Size:
(L): 107.5″ (W): 40.3″ (H): 58.7″
• Applicable tape heads: ALCO tape head、BP tape head、TH tape head
• Minimum / maximum carton size (customizable):
(L): 362mm ~ 415mm; 14.25” ~ 16.34”
(W): 267mm ~ 282mm; 11.25” ~ 11.10”
(H): 194mm ~ 284mm; 11.18” ~ 7.64”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• The carton sealing machine includes 4 workstations:
• A separator workstation
• A workstation for lifting the outer case, equipped with a vibratory machine (to ensure the top cover is properly squared before entering the folding area).
• A folding workstation that folds the lid and closes it.
• A final workstation, with its top and bottom covers sealed, but not labeled together.

• Folding cover mechanism (folding top cover)
