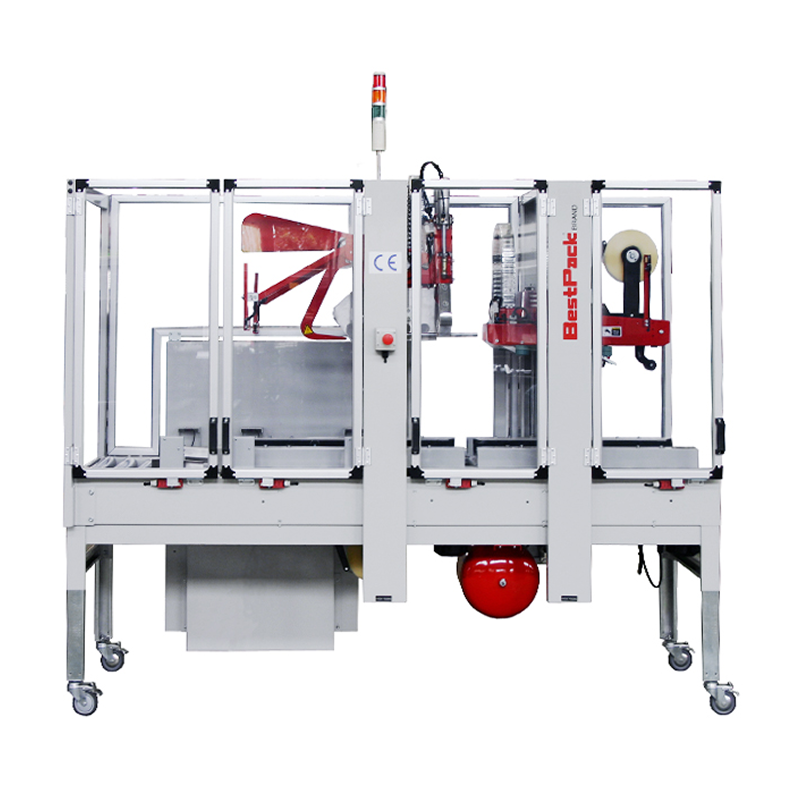

The CS series carton sealer is a fully automatic, self-adjusting carton sealing machine that does not require manual carton feeding.It is designed for end-of-line packaging systems, providing efficient, reliable, and durable carton sealing performance. The machine automatically adjusts to handle cartons of various sizes, making it ideal for applications requiring high efficiency, high throughput, and stable sealing performance.

• Tape head replacement requires no tools
• Dual side belt drive system provides maximum driving force and longer service life
• Tape width adjustment range:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Tension control arm ensures smooth tape feed and reduces noise
• Tape tension adjustment knob prevents excessive tape dispensing
• All drive belts equipped with V-guides for precise tracking and longer belt life

• Mechanical dimensions:
L: 2430mm(95.67″) W: 1585mm(62.4″) H: 2100 mm(83.66″)
• Compatible tape heads: ALCO tape head, BP tape head, TH tape head
• Carton size range (Customizable)
(L): 279mm ~ 888mm; 11” ~ 35”
(W): 159mm ~ 520mm; 6.25” ~ 20.5”
(H): 152mm ~ 762mm; 6” ~ 30”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• High-speed tape head with patented tape tab length adjustment plate
•PLC programmable control system
• Carton separating unit with carton alignment mechanism
•Automatic flap folding device
• Machine working height: 24.75″ – 28.0″
• Top carton holding mechanism
• Soft Fill photo sensor for detecting empty or overloaded cartons
• Bottom tape air blowing device
• Low tape warning indicator light
• Heavy-duty frame with locking casters
• Interlocked safety door
• Maintenance-free oil-free pneumatic cylinders
• Operation manual

•
