CTFXU

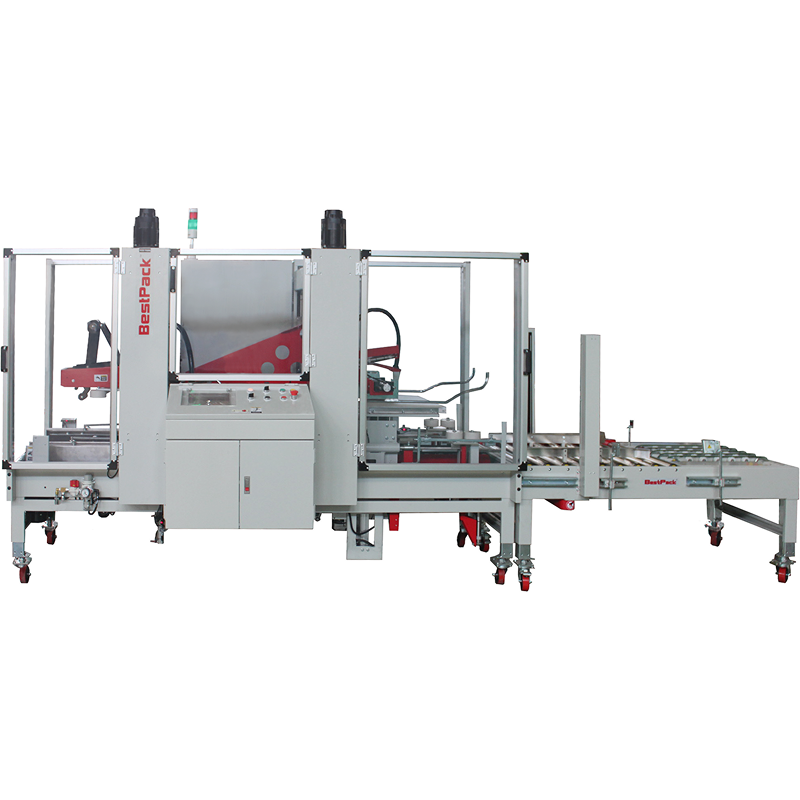

Fully automatic fruit box sealing machine
Automatic flap folding carton sealer
• Standard machine color configuration: Gray and red.
•Compatible with 2″ and 3″ tape heads, or special tape heads. (1.5″ or 4″–6″)
• Machine color and material (stainless steel) can be customized upon request.
Fully automatic Operation
Random carton size capability
Top and bottom sealed
Electricity demand:
(Custom voltage available)
Air compressor demand:
Shipping weight:
• Tool-free tape head replacement
• Adjustable tape width range:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• tape adjustment without additional parts
• Tape tension adjustment knob prevents excessive tape dispensing
• Adjustable pressure wheels straighten the carton for precise tape placement.
• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.
• Compatible tape heads: ALCO tape head, BP tape head, TH tape head
• Minimum/maximum carton range: (Customizable to customer requirements)
(L)362mm ~ 415mm ; 14.25” ~ 16.34”
(W)267mm ~ 282mm ; 11.25” ~ 11.10”
(H)194mm ~ 284mm ; 11.18” ~ 7.64”
| action | Air consumption | |
| box/min | L/ min | CFM |
| 22 | 302.81 | 10.69 |
• A separator workstation
• A workstation with a vibratory machine for lifting coat cases
(To ensure the top cover is properly squared before entering the folding area)
• A folding workstation that folds the lid and closes it.
• A final workstation, with its top and bottom covers sealed, but not labeled together.
• Folding cover mechanism (folding top cover)
• Semi-automatic carton separator
