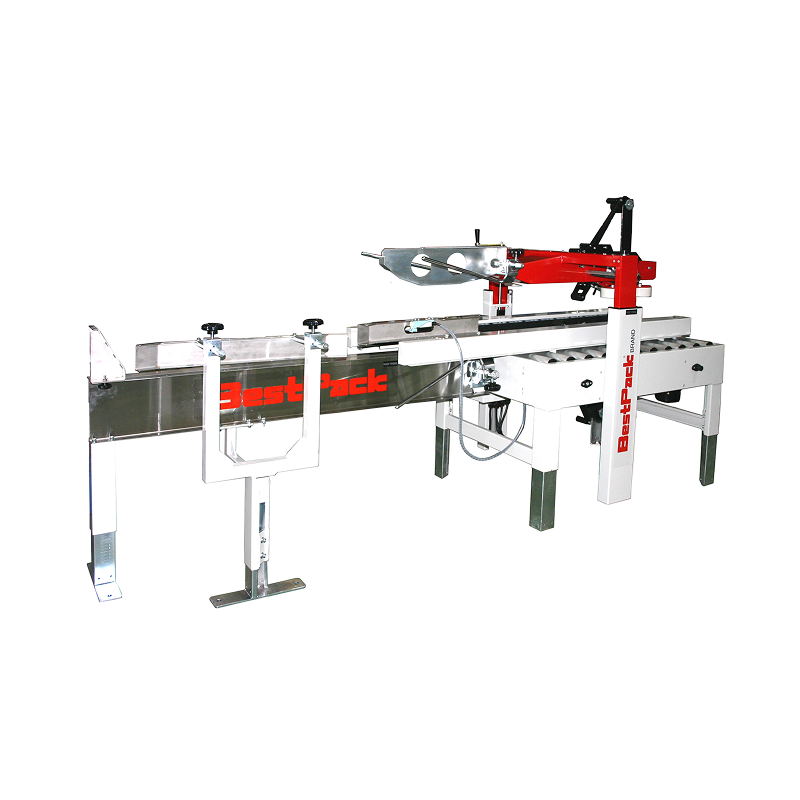

The Msdbf series is a semi-automatic carton sealing machine equipped with a flap folding mechanism, designed for sealing both light-duty cartons and heavy-duty cartons. The Msdbf offers a wide sealing range and provides excellent sealing quality for most carton types. All systems are equipped with our unique quick-release high-speed tape head, featuring a patented tape tab length adjustment plate and a two-stage column design. The upper frame can be extended to increase sealing height by 4 inches, providing greater flexibility for different carton sizes.

• Speed: Up to 40 cartons per minute
• Shipping weight: 342 – 550 lbs
• Power requirement: 110 Volts 60 Hz (Custom voltage available)
• Tape head replacement requires no tools
• Two-stage column design
• Dual side belt idlers enhance drive performance
• All drive belts equipped with V-guides for precise tracking and longer belt life

•Machine dimensions:
L: 2529.8mm(99.6″) W: 833.12mm(32.8″) H: 1785.6mm(70.3″)
• Compatible tape heads: ALCO tape head, BP tape head, TH tape head
• Carton size range (Customizable):
(L): 120mm ~ unlimited; 4.72” ~ unlimited
(W): 100mm ~ 500mm; 3.93” ~ 20.08”
(H): 100mm ~ 500mm; 3.93” ~ 20.08”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• 2″ tape head or 3″ tape head (Select one)
• Two side belts
• Upper frame can be raised to increase carton height adjustment range by 4″
• Machine working height: 650 mm ± 50 mm
• Adjustable width and height on both sides of the machine
• Top carton holding mechanism with four alignment rollers
• Tape roll length: 1000 yd, 1500 yd, 2000 yd
• Heavy-duty machine frame
•UL electrical components / CE electrical components (Customizable)
• Manual carton adjustment with interchangeable 2″ or 3″ tape heads
• Electrical on/off switch can be installed on either side of the machine
• Instruction manual

• High-speed motor upgrade (Up to 125 ft/min)
• Emergency stop button
• Motorized height and/or width adjustment
• Safety guard (Optional power cut-off device)
•Stainless steel construction
• Toolbox
• Conveyor system
• Tape break detection device
• Digital display
• Inkjet printer
• Printing press
