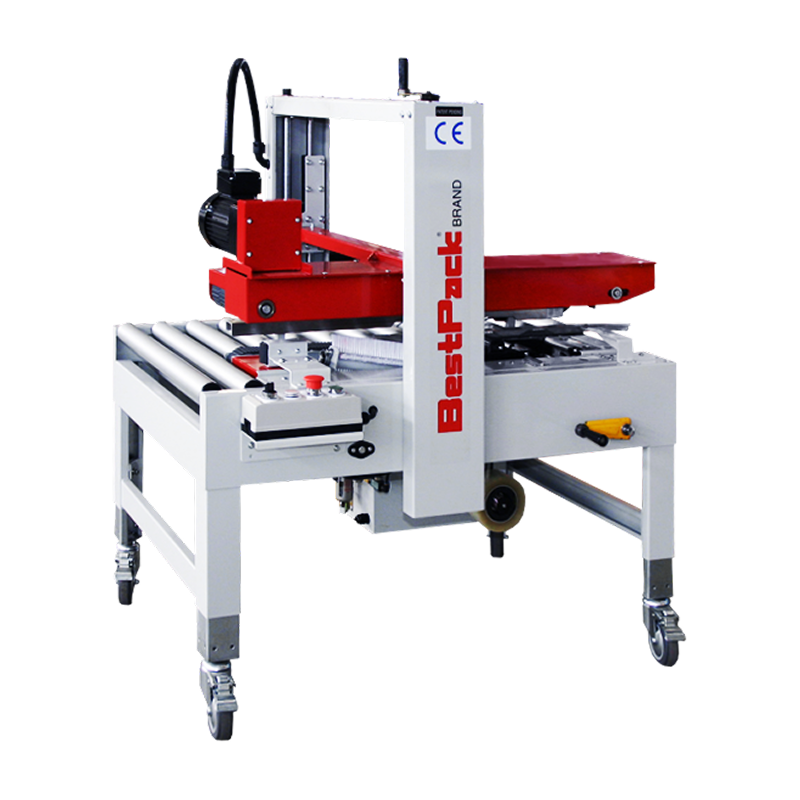

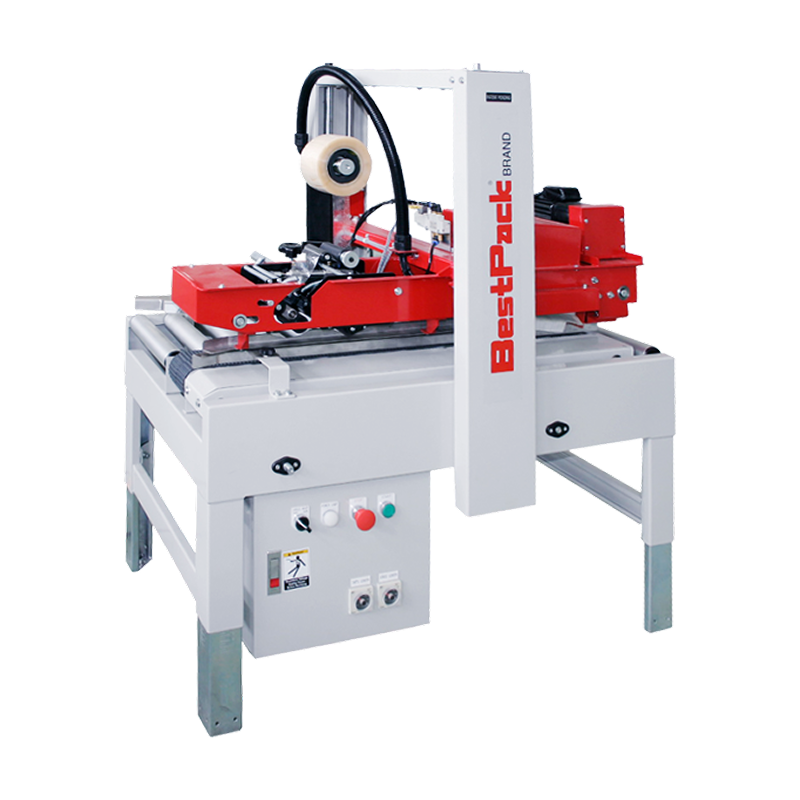

MT1E
Single-side corner carton sealer
Semi-automatic carton sealer
• Standard machine color: gray and red (Customizable according to customer requirements)
• Compatible with 2″, 3″ tape heads or special tape heads (1.5″ or 4″–6″)
• Machine color and material (stainless steel) can be customized upon request
• Optional separator conveyor system available to reduce labor requirements and increase productivity
• Customizable sealing direction and position available Corresponding models: MT1EBL, MT1EBR, MT1ETL, MT1ETR
| Semi-automatic | Fixed carton size | Single-side sealing |
| Electricity demand:110V 60Hz, 122 WATTS (Custom voltage available) | Air compressor demand:XNUMX psi, XNUMX scfm50 PSI, 5 SCFM | Shipping weight: 350 lbs |
The MT1E series is a high-speed single-side carton sealing machine. The MT1E provides four sealing configurations: Bottom left corner, bottom right corner, top left corner, and top right corner sealing. It is specifically designed to seal one side of the carton, delivering efficient and precise sealing performance. This high-quality and uniquely engineered product meets international standards and can be custom-designed by Tien Heng BestPack to meet specific customer requirements.
• Speed: Up to 40 cartons per minute
• Shipping weight: 350 lbs
• Power requirement: 110 Volts 60 Hz (Custom voltage available)
• Adjustable width and height on both sides of the machine
• All drive belts equipped with V-guides for precise tracking and longer belt life
• Electrical on/off switch can be installed on either side of the machine
•Machine dimensions:
L: 1079.5 mm(42.5″) W: 939.8 mm(37.0″) H: 1282.7 mm(50.5″)
• Compatible tape heads:ALCO tape head、BP tape head
• Carton size range (Customizable):
(L): 137mm ~ 286mm; 5.39” ~ 1.3”
(W): 151mm ~ 298mm; 5.94” ~ 1.73”
(H): 50mm ~ 155mm; 1.97” ~ 6.1”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.
• 2″ tape head or 3″ tape head (Select one)
• One top belt and one bottom belt drive
• Bottom single-side corner sealing or top single-side corner sealing
• Machine working height: 650 mm ± 50 mm
• Tape roll length: 1000 yd, 1500 yd, 2000 yd
• Heavy-duty machine frame
•UL electrical components / CE electrical components (Customizable)
• Operation manual
• High-speed motor upgrade (Up to 125 ft/min)
• Emergency stop button
• Safety guard (Optional power cut-off device)
•Stainless steel construction
• Toolbox
• Conveyor system
• Tape break detection device
• Digital display
• Inkjet printer
• Printing press
