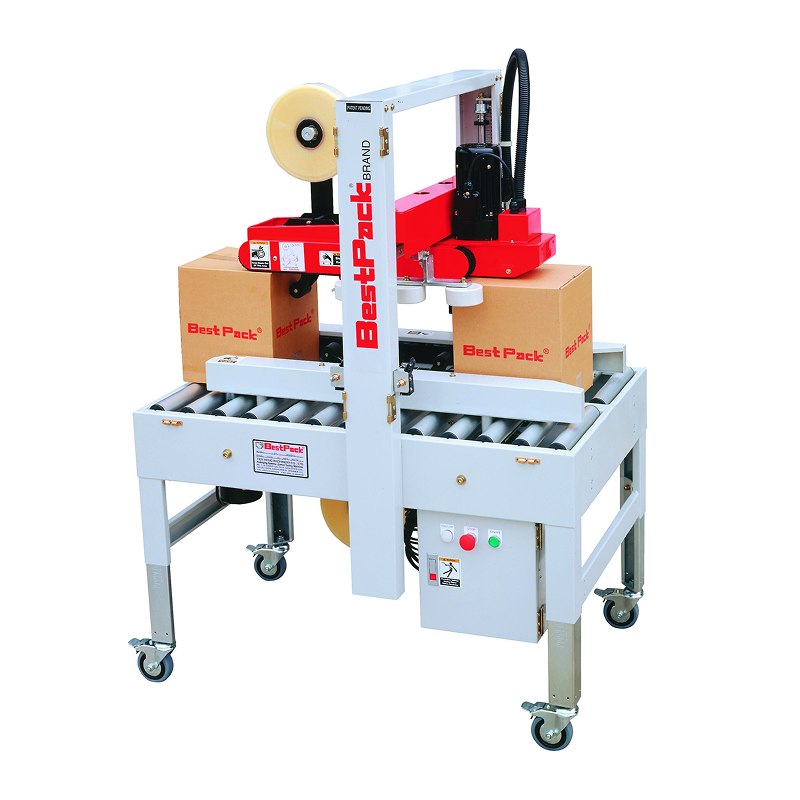

The RQ series is an automatic adjustable carton sealing machine with a robust structure and high sealing stability. It features a four-belt conveyor system and can be used for sealing heavy-duty cartons. This machine can achieve the highest sealing standards for heavy cartons of various sizes and specifications.

• Speed: Up to 40 boxes per minute
• Shipping weight: 342-550 lbs
• Power requirement: 110 Volts 60 Hz (customizable)
• Tool-free tape replacement for main unit
• Dual top and bottom drive belts reduce idler pulley friction
• Upper main unit with brush smoothing system for reliably smoothing the tape on top of the sealing boxes.
• Tape adjustment range from:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape adjustment without additional part
• Tension control arm for smooth, continuous tape pulling with minimal noise.
• Tape tension adjustment knob to prevent excessive tape feed.

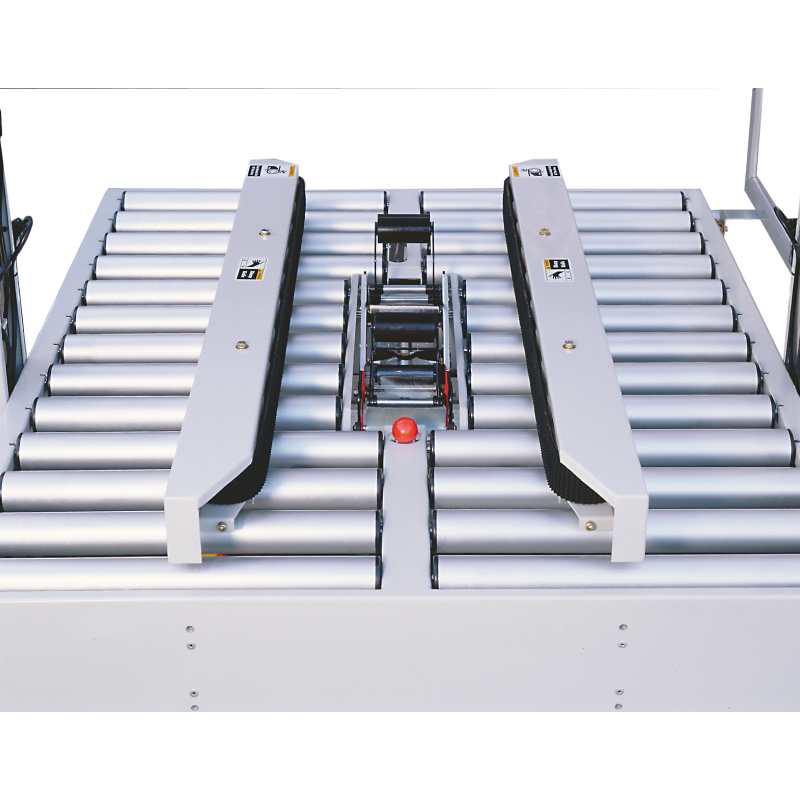

• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.

• Machine Size:
(L): 42.8″(W): 34.6″(H): 57.5″
• Applicable tape heads: ALCO tape head、BP tape head、TH tape head
• Minimum / maximum carton size (customizable):
(L): 229mm ~ unlimited; ~ 9” ~ unlimited
(W): 191mm ~ 762mm; 7.5” ~ 30”
(H): 114mm ~ 521mm; 4.5” ~ 20.5”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.

• Tape applicators: 2″ tape applicator & 3″ tape applicator
• Two side straps
• Two-section column design
• Machine worktable height 24.6″ to 30.75″

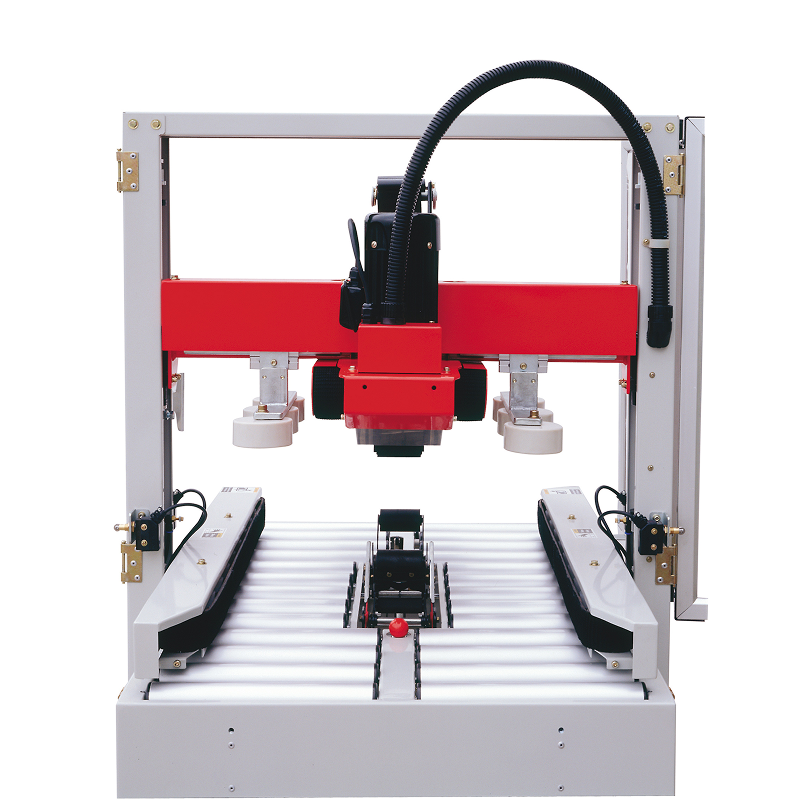

• The upper clamping mechanism has 4 dedicated rollers
• Tape roll lengths: 1000 yards, 1500 yards, 2000 yards
• Heavy-duty frame
• UL electrical components / CE electrical components (customization available upon request)
• Instruction manual

• Emergency stop button
• High-speed motor upgrade (up to 125 feet per minute)
• Folding mechanism (top fold/bottom fold)

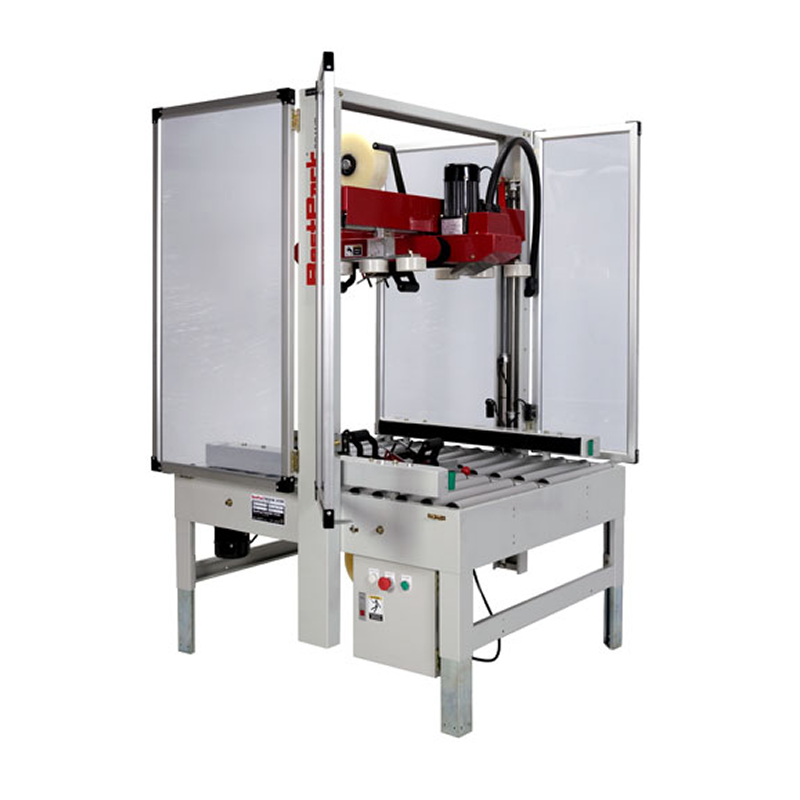

• Safety door (power off device optional)
• Stainless steel construction
• Toolbox
• Conveyor rack
• No-tape / tape-break detection device
• Digital display
• Inkjet printer
• Printing press
