RS-WA
Fully automatic tape-sealing machine (low-profile type)
Automatic carton sealer
• Standard machine color configuration: Gray and red.
• Compatible with 2″ and 3″ tape heads, or special tape heads (1.5″ or 4″–6″)
• Machine color and material (stainless steel) can be customized upon request.
全自動
Cardboard box random size
Top & Bottom Seal
Power Requirement：110 Volts 60 Hz
(customizable)
Air pressure requirement: 55-80 PSI, 5 SCFM
Shipping weight: 342-550 lbs

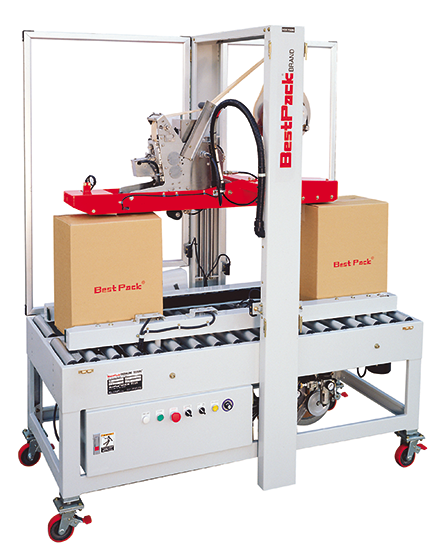

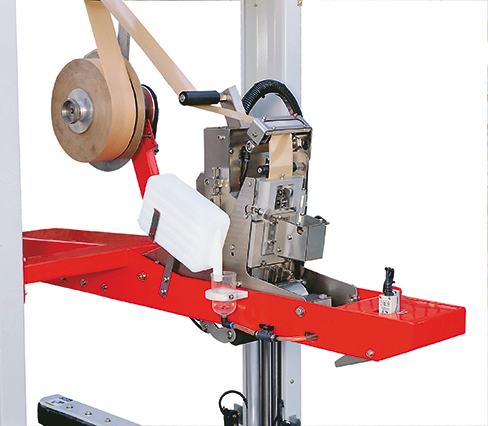

The RS-WA series is a fully automatic adjustable wet tape sealing machine. It seals quickly and has a robust structure. With a unique pull-out wet tape applicator, it can easily handle the sealing of cartons of different sizes, whether it is sealing the top and bottom of low cartons or heavy cartons.
• Speed: Up to 40 boxes per minute
• Shipping weight: 342 – 550 lbs
• Power requirement: 110 Volts 60 Hz (customizable)
• Two-section column design
• Tool-free tape replacement for main unit
• Dual top and bottom drive belts reduce idler pulley friction
• Upper main unit with brush smoothing system for reliably smoothing the tape on top of the sealing boxes.
• Tape adjustment range from:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Instant tape adjustment without additional part
• Tension control arm for smooth, continuous tape pulling with minimal noise.
• Tape tension adjustment knob to prevent excessive tape feed.
• All drive belts are equipped with V-shaped guides for accurate guidance and extended belt life.
• Machine Size:
(L): “(W): “(H): “
• Minimum / maximum carton size (customizable):
(L): 120mm ~ unlimited; ~ 4.72” ~ unlimited
(W): 110mm ~ 510mm; 4.33” ~ 20.07”
(H): 98mm ~ 510mm; 3.86” ~ 20.07”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.
| action | air consumption | |
| box/min | L/ min | CFM |
| 40 | 531.03 | 18.75 |
• Tape applicators: 2″ tape applicator & 3″ tape applicator
• Two side straps
• Machine worktable height 24.6″ to 30.75″
• The upper clamping mechanism has 4 dedicated rollers
• Tape roll lengths: 1000 yards, 1500 yards, 2000 yards
• Heavy-duty frame
• UL electrical components / CE electrical components (customization available upon request)
• Instruction manual
• Emergency stop button
• High-speed motor upgrade (up to 125 feet per minute)
• Folding cover mechanism (folding top cover)
• Safety door (power off device optional)
• Stainless steel construction
• Toolbox
• Conveyor rack
• No-tape / tape-break detection device
• Digital display
• Inkjet printer
• Printing press
