RSL

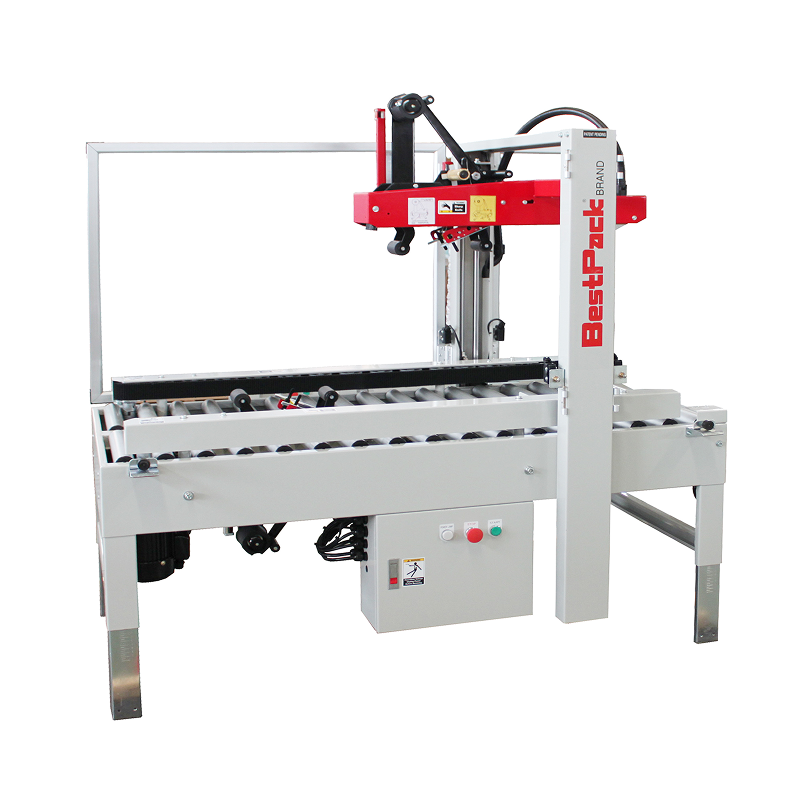

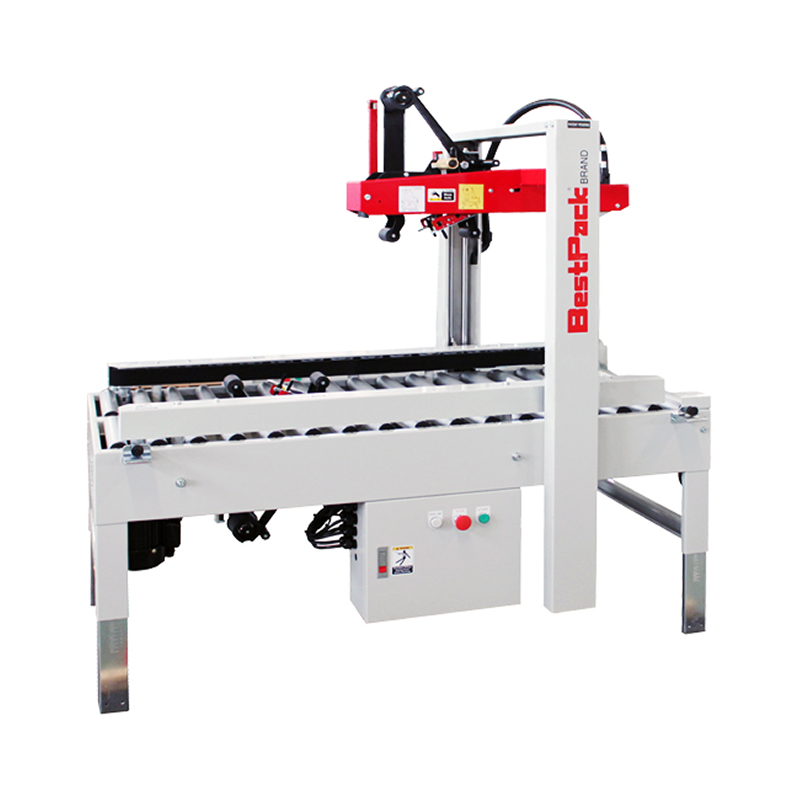

Automatic Carton Detection Carton Sealer (Low-Profile)
Automatic carton sealer
• Standard machine color configuration: Gray and red.
•Compatible with 2″ and 3″ tape heads, or special tape heads. (1.5″ or 4″–6″)
• Machine color and material (stainless steel) can be customized upon request.
Fully automatic Operation
Random carton size capability
Top and bottom sealed
Power Requirement：110 Volts 60 Hz
(Custom voltage available)
Air pressure requirement: 55-80 PSI, 5 SCFM
Shipping weight: 342-550 lbs
The RSL series is an automatic adjustable carton sealer. It seals quickly and has a robust structure. Its feature is that it can seal relatively low-profile cartons. The lowest carton height that the RSL can seal is 2", which is 4" lower than the average sealing height.
• Speed: Up to 40 cartons per minute
• Shipping weight: 342 – 550 lbs
• Power requirement: 110 Volts 60 Hz (Custom voltage available)
• Two-stage column design
• Tool-free tape head replacement
• Dual top and bottom drive belts reduce idler roller friction
•Upper main unit with brush smoothing system for reliably smoothing the tape on top of the sealing boxes
• Adjustable tape width range:
55mm(2.17”)、65mm(2.56”)、75mm(2.96”)
• Tape width adjustment can be completed instantly without additional parts
• Tension control arm ensures smooth tape feeding, continuous unwind, and reduced noise
• Tape tension adjustment knob prevents excessive tape dispensing
• All drive belts are equipped with V-guides for accurate tracking and extended belt life
• Machine dimensions:
L: 1455.4mm(57.3″) W: 878.8mm(34.6″) H: 1460.5 mm(57.5″)
• Compatible tape heads: ALCO tape head, BP tape head, TH tape head
• Minimum / maximum carton size (customizable):
(L): 150mm ~ unlimited; ~ 4.33” ~ unlimited
(W): 110mm ~ 510mm; 6.79” ~ 20.08”
(H): 60mm ~ 510mm; 2.36” ~ 20.08”
*The range of cartons can be customized according to customer requirements. Please consult our sales department and provide relevant information regarding your specific needs.
| action | Air consumption | |
| box/min | L/ min | CFM |
| 40 | 581.07 | 20.52 |
•Tape heads: 2″ tape head & 3″ tape head
• Two side drive belts
• Machine worktable height: 24.6″ to 30.75″
• Upper carton holding mechanism with four dedicated rollers.
• Tape roll lengths: 1000 yards, 1500 yards, 2000 yards
• Heavy-duty frame
• UL electrical components / CE electrical components(customizable upon request)
• Operation manual
• High-speed motor upgrade (up to 125 ft/min)
• Flap folding mechanism (top flap / bottom flap)
• Internal interlocked safety guards
• Stainless steel construction
• Toolbox
• Conveyor rack
•No-tape / tape-break detection device
• Digital display
• Inkjet printer
• Printing press
