H301
High-profile stretch wrapping machine

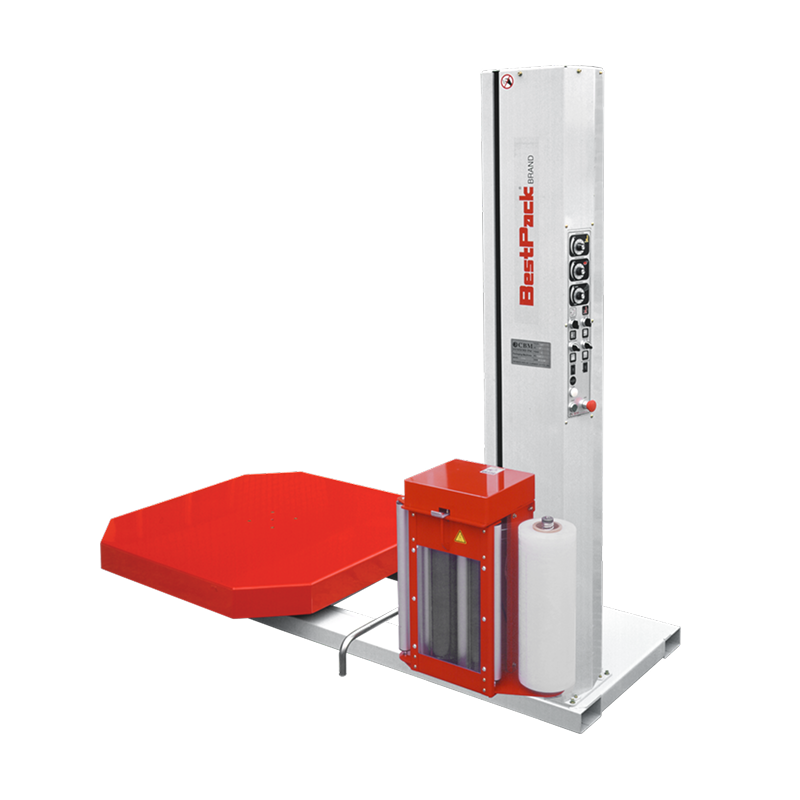

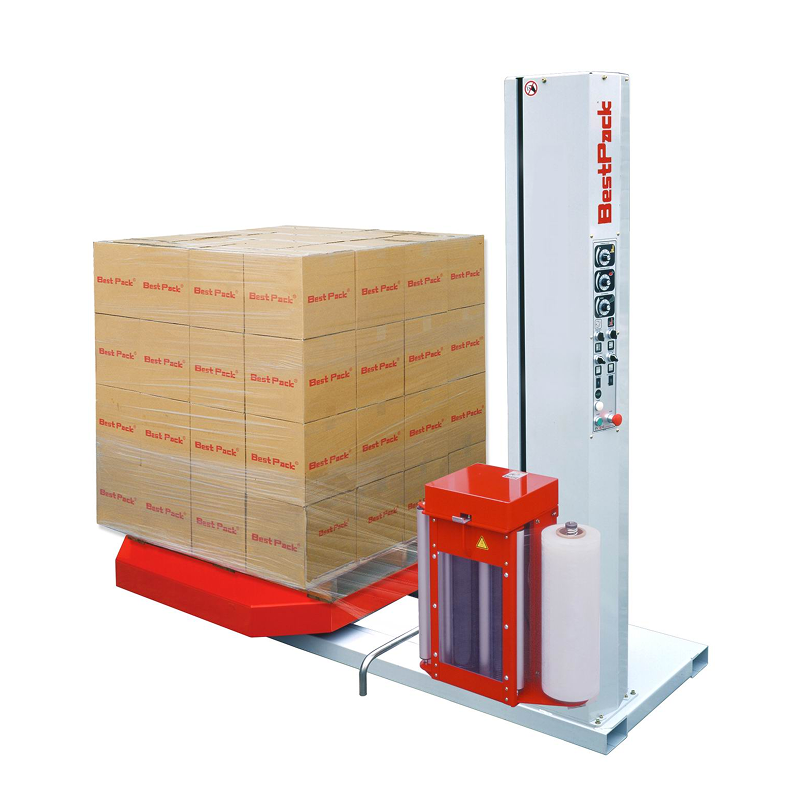

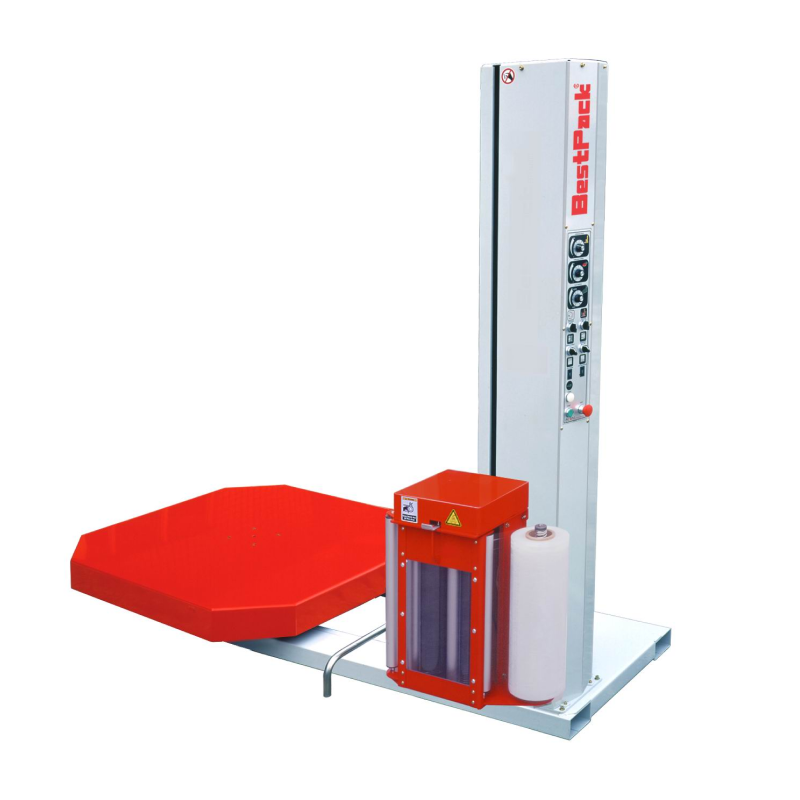

High-profile stretch wrapper
• Standard machine color: gray and red (Customizable according to customer requirements)
• Machine color and material (stainless steel) can be customized upon request
• H301 – BestPack heavy-duty stretch wrapper, capable of wrapping pallet loads up to 5,000 lbs
| Semi-automatic | Standard type | Pre-stretch ratio:300 % |
| Power requirements: 110 Volts 60 Hz, 20 Amps (Custom voltage available) | Production speed: 30-50 pallets per hour | Load capacity: 5000 lbs |
BestPack offers a full range of semi-automatic stretch wrapping systems designed for high performance, durability, cost-efficiency, and maximum versatility. The HXNUMX high-profile stretch wrapper is designed for general pallet wrapping applications, providing reliable and consistent load containment with a cost-effective solution.
Turntable System:
• ANSI #60 chain drive with automatic tension adjustment
• Turntable speed: 1–12 rpm (variable speed control)
• Home position proximity sensor
• Turntable supported by 4 heavy-duty rollers with dual sealed bearings
• Maintenance-free drive system (no lubrication required)
• Chain-driven film carriage system
• Hinged mast for easy tilting and transportation
Film Carriage System:
• Film size: φ3″ x φ10″ x (H)20″
• Easy film loading system designed for operator safety
• Film tension stabilizer to reduce noise
•Adjustable pallet height photoelectric sensor
• Reinforced corner wrapping arm with adjustable tension spring
• Film stabilization rollers
• 1/4 HP, 90V DC motor-driven film carriage(with knurled rollers achieving 300% pre-stretch)
• Dual guide rails (7/8″ x 1-5/8″) with UHMW guide track
• Clutch-controlled film carriage system
• Multi-level electronic film tension control
Control features
• Automatic pallet height detection
• Adjustable wrapping speed
• Quick and easy film replacement
• Reinforced wrapping function
• Automatic film break detection
• Emergency stop button
• Power indicator light
• Film carriage speed control
• Top and bottom wrap selector (1–3 wraps)
• Home position & jog control
• Manual film carriage up/down control
• Pre-stretch speed control
• Turntable speed control
• Power requirement:110 volts, 60 Hz
• Turntable speed:0–12 rpm
• Turntable size:1280 x 1280 mm (50.4″ x 50.4″)
• Film carriage:300% pre-stretch
• Minimum load height:280 mm (11″)
• Machine dimensions:
L: 2437mm (95.9″)
W: 1280mm (50.4″)
H: 2472 mm (97.3″)
• Maximum wrapping height: 2150 mm (84.65″)
• Maximum load capacity:5000 lbs
•
• Top press plate
• High-profile dual turntable
• Rope-type wrapping system
•Automatic film clamp & cut
• Film size: φ3″ x φ10″ x (H)30″
