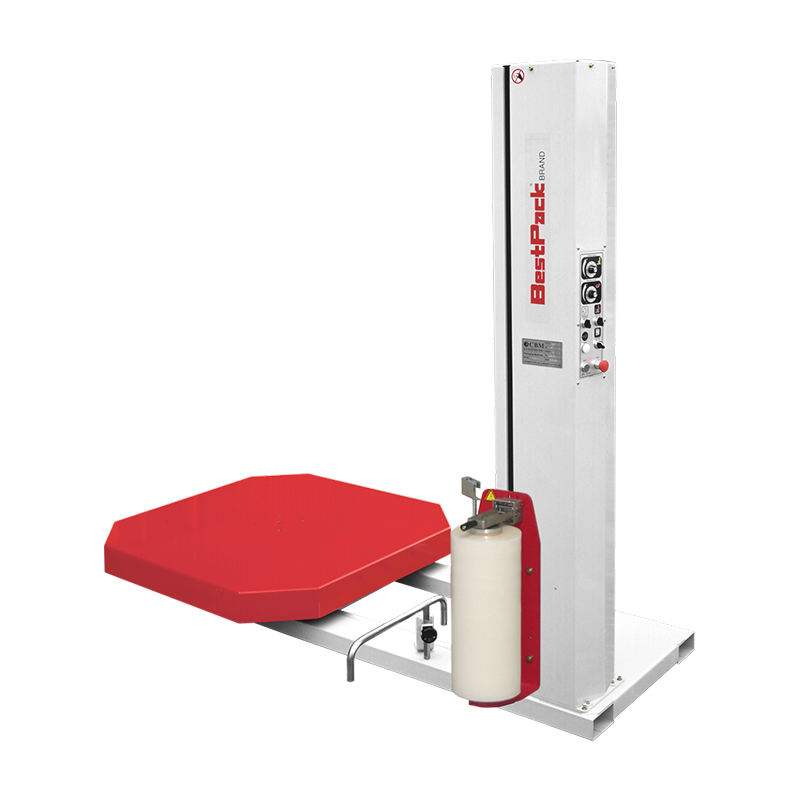

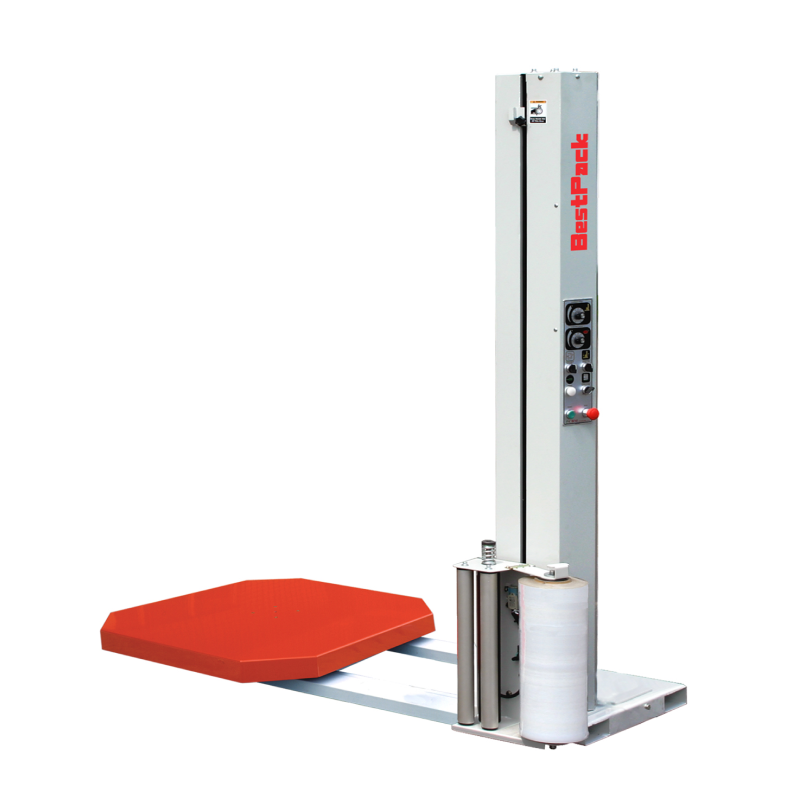

Tianheng offers a variety of semi-automatic stretch wrapping systems that are high-performance, durable, economical, and highly versatile to meet your packaging application needs.

Turntable/rack characteristics:
• ANSI#60 chain drive with automatic tensioning function
• Turntable: 1-12 RPM multi-speed control
• Reset proximity switch
• Turntable: 4 heavy-duty rollers with dual bearing support system for carbonated feedstock
• Lubrication-free transmission system
• Attached diaphragm seat chain drive
• The uprights are hinged and can be laid down for easy transport.

Film holder characteristics:
• Film size: £p3″ x £p10″ x (H)20″
• Simplified film loading system (designed for operator safety)
• Film stabilization controller reduces film exit noise.
• Adjustable pallet height photoelectric sensor
• The rocker arm mechanism at the corner is reinforced with an adjustable tension spring.
• Film stabilizing roller
• 1/4 HP 90V DC motor drive diaphragm (with toothed rubber roller, up to 300% diaphragm pre-tension)
• Dual 7/8″ x 1 5/8″ tracks with UHMW film mount guide grooves
• Clutch control diaphragm bracket
• Multi-stage electronic control of film tension

Control characteristics:
• Automatically detects pallet height
• Adjustable packing speed
• Easy and quick film replacement
• Features reinforced lining
• Automatic detection of membrane breakage
• Emergency stop switch
• Power indicator light
• Film holder speed control
• Top and bottom lining repeat counter (1-3)
• Reset and inching switch
• Manual diaphragm holder rise/lower switch
• Pre-tension speed control
• Turntable speed control

• Power requirements: 110 Volts 60 Hz
• Multiple variables: 0~12 RPM
• Turntable dimensions: 1280mm x 1280mm (50.4″ x 50.4″)
• Adhesive film holder: 300%
• Product height: 280 mm (11″)
• Mechanical dimensions:
L: 2442mm (96.06″)
W: 1280mm (50.39″)
H: 2194mm (54.34″)
• Load-bearing dimensions:
H: 2150mm (84.65″)

• Upper pressure plate
• High-bed double turntable
• Woven film inner wrapping
• Heavy-duty turntables can support up to 5000 pounds.
• Adhesive film size: φ3″ x φ10″ x (H)30″
