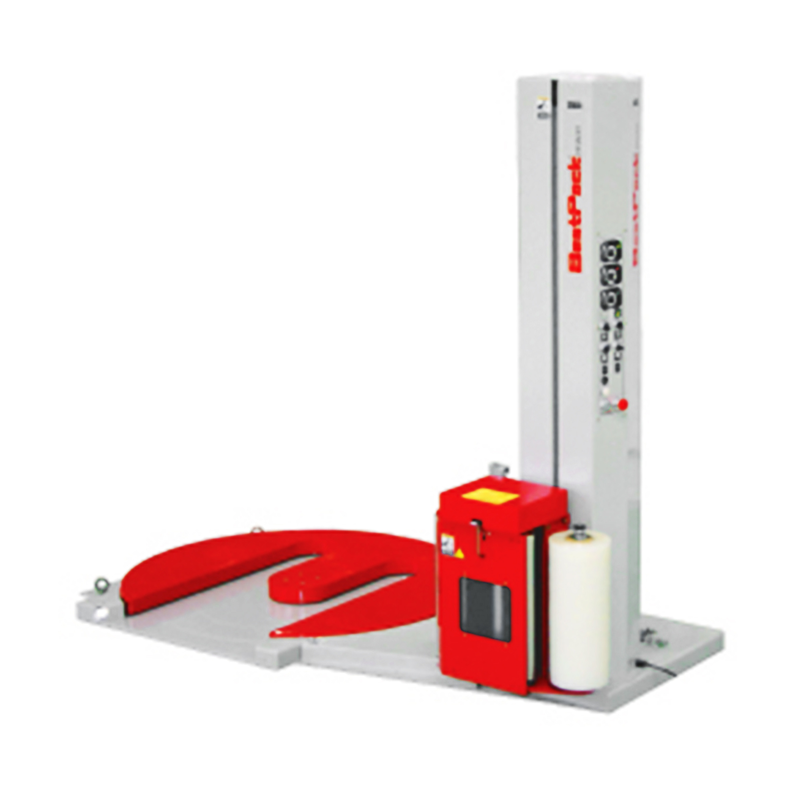

SW701
Low-bed film wrapping machine
Low-profile stretch wrapper
• Standard machine color configuration: Gray and red.
• Machine color and material (stainless steel) can be customized upon request.
Semi-automatic Operation
Standard type
Stretch ratios: 150%, 220%, 300%
Power requirements: 110 Volts 60 Hz, 20 Amps
(Custom voltage available)
Production speed: 35-45 plates/hour
Load capacity: 3300 lbs
The SW701 film wrapping machine is a standard film wrapping machine capable of wrapping palletized packages up to 4,000 lbs. Its film holder is custom-designed to allow for pre-stretching of the film up to 220% of its length. Optional features for the SW series film wrapping machines include an integrated weighing device, extended wrapping height, and a larger turntable. All BestPack film wrapping machines feature heavy-duty frames and forklift access for easy handling.
Turntable/rack characteristics:
• 58″, 3/8″ diameter laser-cut steel plate
• Load capacity: 4000 lbs
• RS50 chain drive
• Electronic start/stop
• 1-12 RPM (adjustable speed)
• 1/2 HP, DC controlled drive motor
• Low bed
• Repositioning proximity sensor
• Maintenance-free, lubrication-free transmission system
• Dual-bearing (lubrication-free), 12-flywheel drive
• 11 support wheels
• Slots equipped with hydraulic trolleys
• The column is equipped with a pivot at the bottom, allowing it to be laid down for easy transport.
Film holder characteristics:
• 10″ x 20″ film capacity
• 1/2 HP, AC controlled drive motor (column lifting motor)
• Adjustable pallet height detection camera
• Film stabilizing roller
• Rubber-tired pre-tensioned rollers, 300% pre-tension
• The diaphragm holder is equipped with a safety stop switch.
• If the membrane breaks, the machine will automatically detect and stop.
Control characteristics:
• On/Off indicator light
• Return button
• The film feeding speed can be adjusted to perfectly match the turntable speed to achieve the appropriate film tension.
• Film holder pause switch
• Turntable speed control
• Film holder speed control
• Manual diaphragm holder rise/lower switch
• Turntable inching switch
• Single or double-layer insulated switch
• Omron PLC includes connection ports
• Motor starting device, with overload reset and electrical overload protection devices.
• Repeat the counting of the top and bottom linings separately: 801 (0-9)
• Film holder stop switch (rising and falling)
• Production speed: 35-45 plates/hour
• Loading dimensions: 53″ x 53″ x 82″
• Power: 110V, 60Hz, 20 Amps
• Mechanical weight: 840 lbs.
